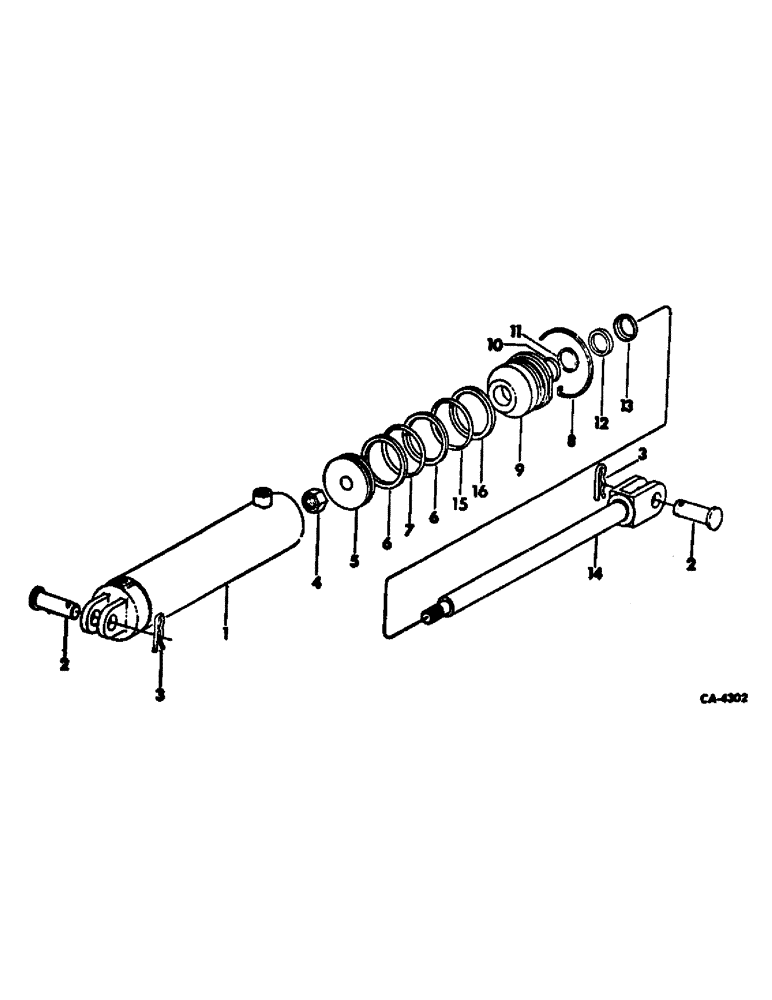

Запчасти Case IH 315 (A-29[A]) - HYDRAULIC CYLINDER MACHINES BUILT 1977 AND SINCE UNITS D AND E

61110C91

CYLINDER

ASSY, hydraulic 3-1/2 x 16

1шт.

1

61111C1

BODY

ASSY

1шт.

2

60909C1

PIN

headed

2шт.

3

520175R1

CLIP

PIN, quick-attachable cot.

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

5

547724R1

PISTON

ROD ASSY, piston

1шт.

6

375936R1

BACK-UP RING

WASHER, backup

2шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

8

405002R1

RING

RETAINER, front head

1шт.

9

60299C1

HEAD

front

1шт.

10

378735R1

O-RING,1.475" ID x 0.21" Width

1/1/4 x 1-1/2 x 1/8

1шт.

11

403622R1

BACK-UP RING

WASHER, back-up

1шт.

12

383770R1

WASHER

WIPER, piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

14

547742R1

ROD

ASSY, piston

1шт.

15

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

1шт.

16

404015R1

BACK-UP RING

WASHER, backup

1шт.

76459C91

CYLINDER ASSY, 3-1/2 x 16, for service replacement order 61110C91

1шт.

76460C1

ROD

ASSY, tie

4шт.

124634

NUT,9/16"-18, G5

4шт.

76461C1

YOKE

1шт.

75777C1

PIN

1шт.

75757C1

PLUG

NUT, plug

1шт.

76462C1

SLEEVE

1шт.

76463C1

END

1шт.

76464C1

ROD

1шт.

75761C1

PISTON

1шт.

75762C1

NUT

piston

1шт.

75781C1

FORK

YOKE

1шт.

75782C1

PIN

1шт.

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW, 3/8 x 1-3/4 pln h/shd cap

1шт.

480523R1

HAIR PIN COTTER

PIN, clip

1шт.

76465C1

SEAL

KIT, repair

1шт.
