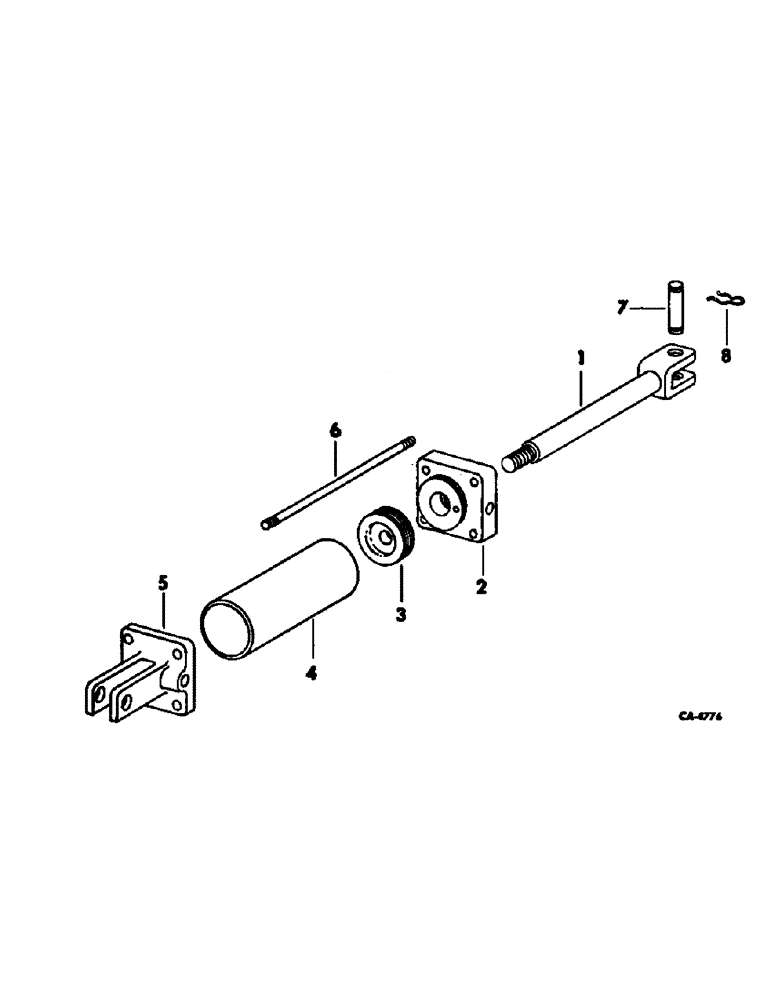

Запчасти Case IH 315 (A-28) - HYDRAULIC CYLINDER, UNITS D AND E, MACHINES BUILT 1976 TO 1977

63551C91

CYLINDER ASSY, 3-1/2 x 16 double acting hydraulic

1шт.

1

63353C1

ROD ASSY, piston

1шт.

2

63463C1

END, cylinder

1шт.

3

63464C1

PISTON

cylinder

1шт.

9413973

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 hex, lock

1шт.

4

63552C1

SLEEVE, cylinder tube

1шт.

5

63554C1

YOKE ASSY, clevis & head

1шт.

6

63483C1

ROD, cylinder tie

4шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. MF lock

8шт.

7

63586C1

PIN, clevis

2шт.

8

63485C1

PIN, retainer

4шт.
