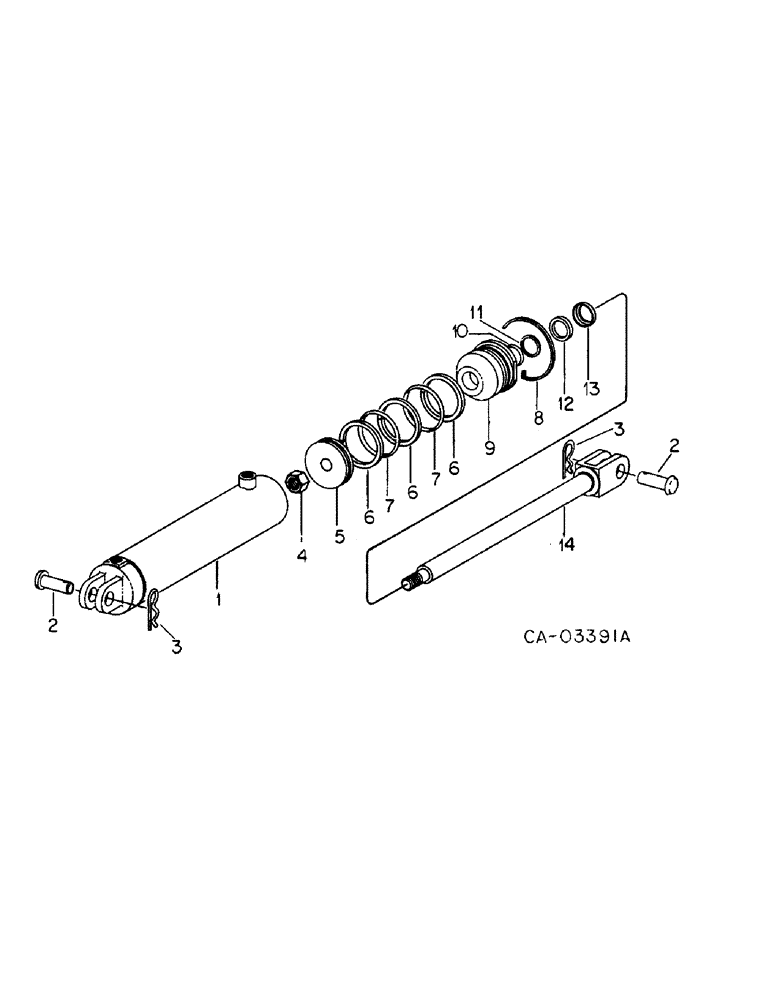

Запчасти Case IH 315 (A-26) - HYDRAULIC CYLINDER 4 X 8 IN., MACHINE BUILT 1977 & SINCE UNITS A, B AND C

548001R92

CYLINDER

hydraulic

1шт.

1

548014R1

HYD TUBE

BODY ASSY, hydraulic cylinder

1шт.

2

64560C1

HEADED PIN

PIN, cylinder pivot

2шт.

3

520175R1

CLIP

PIN, quick attachable cot.

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

5

548013R1

PISTON

1шт.

6

381107R1

BACK-UP RING

WASHER, back-up

3шт.

7

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

3-5/8 x 4 x 3/16, front head seal and piston seal

2шт.

8

548025R1

RETAINER

1шт.

9

548012R1

HEAD (CYLINDER)

HEAD, front

1шт.

10

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1-1/4 x 1-1/2 x 1/8, piston rod seal

1шт.

11

546279R1

WASHER

backup

1шт.

12

386421R1

WASHER

wiper felt

1шт.

13

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

retainer

1шт.

14

548010R1

ROD

ASSY, piston

1шт.

548023R91

KIT

seal rebuild, consists of

1шт.

386421R1

WASHER

1шт.

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

1шт.

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

546279R1

WASHER

1шт.

381107R1

BACK-UP RING

WASHER

2шт.

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

2шт.

548025R1

RETAINER

1шт.

548027R3

PRODUCT GRAPHIC INTERNATIONAL, hydraulic cylinder label

1шт.
