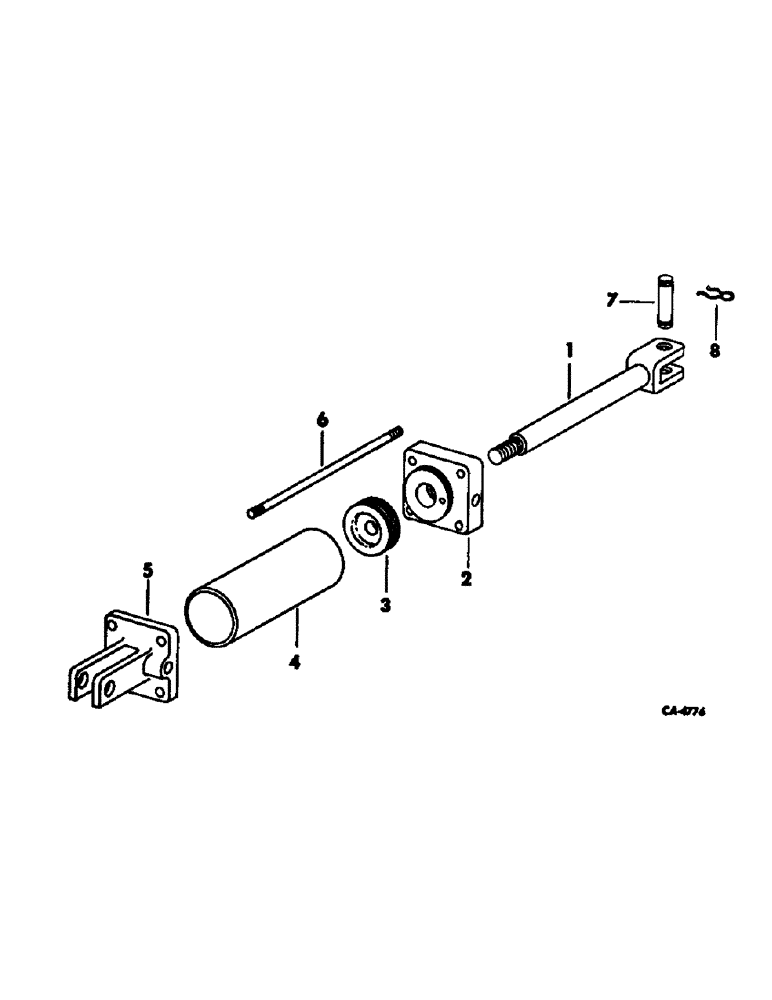

Запчасти Case IH 315 (A-25) - HYDRAULIC CYLINDER, MACHINES BUILT 1975 TO 1977, UNITS A, B AND C

63443C91

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, for service replacement order 548001R92

1шт.

1

63472C1

ROD ASSY, piston

1шт.

2

63473C1

END, cylinder

1шт.

3

63474C1

PISTON

cylinder

1шт.

9413973

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 hex. lock

1шт.

4

63475C1

SLEEVE

cylinder tube

1шт.

5

63476C1

YOKE, clevis & head

1шт.

6

63467C1

ROD, cylinder tie

4шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. MF lock

8шт.

7

63477C1

PIN, clevis

2шт.

8

63471C1

PIN

retainer

4шт.

63478C1

KIT

cylinder repair

1шт.
