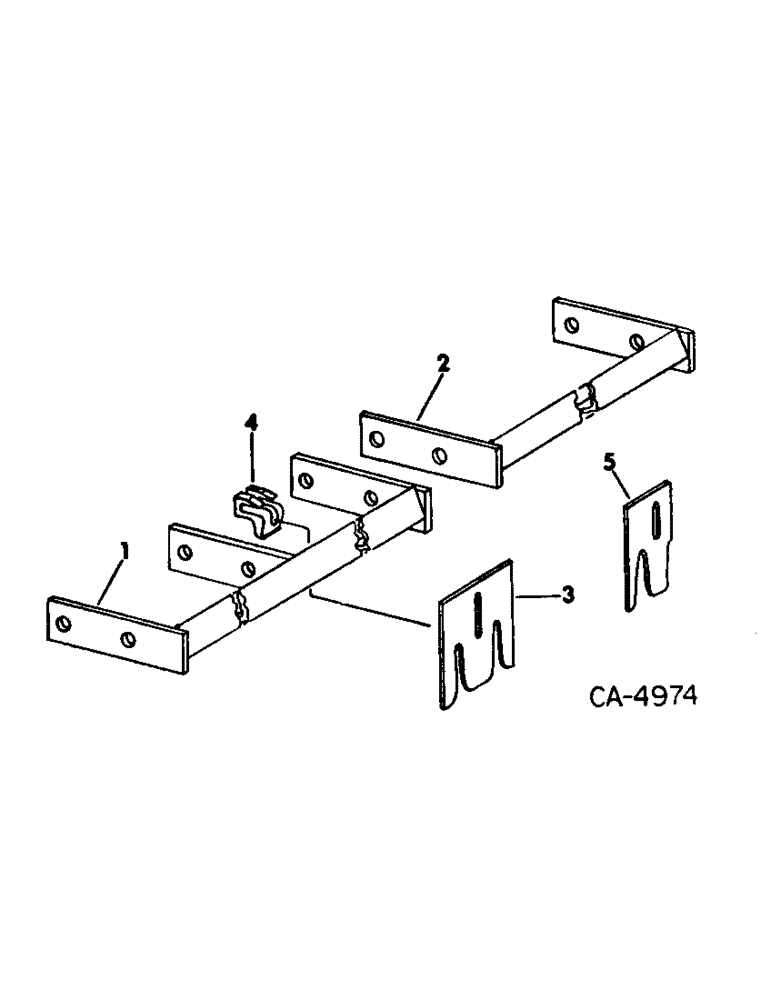

Запчасти Case IH 315 (A-21) - FRONT AND REAR SCRAPERS, UNITS D AND E

1

63548C1

BAR ASSY, center scraper frt

1шт.

2

100917C1

BAR

ASSY, 4 ft. wing scraper, unit D

1шт.

2

63543C1

BAR ASSY, 7 ft. wing scraper, unit E

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

14шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

14шт.

3

540286R2

BLADE

SCRAPER, full

1шт.

4

540285R1

CLAMP

scraper, 1 per scraper

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

1шт.

460908R1

WASHER

11/32 x 1-1/2 x 11 ga znd

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd 2-way lock

1шт.

5

544292R1

HALF BLADE

SCRAPER, half

1шт.
