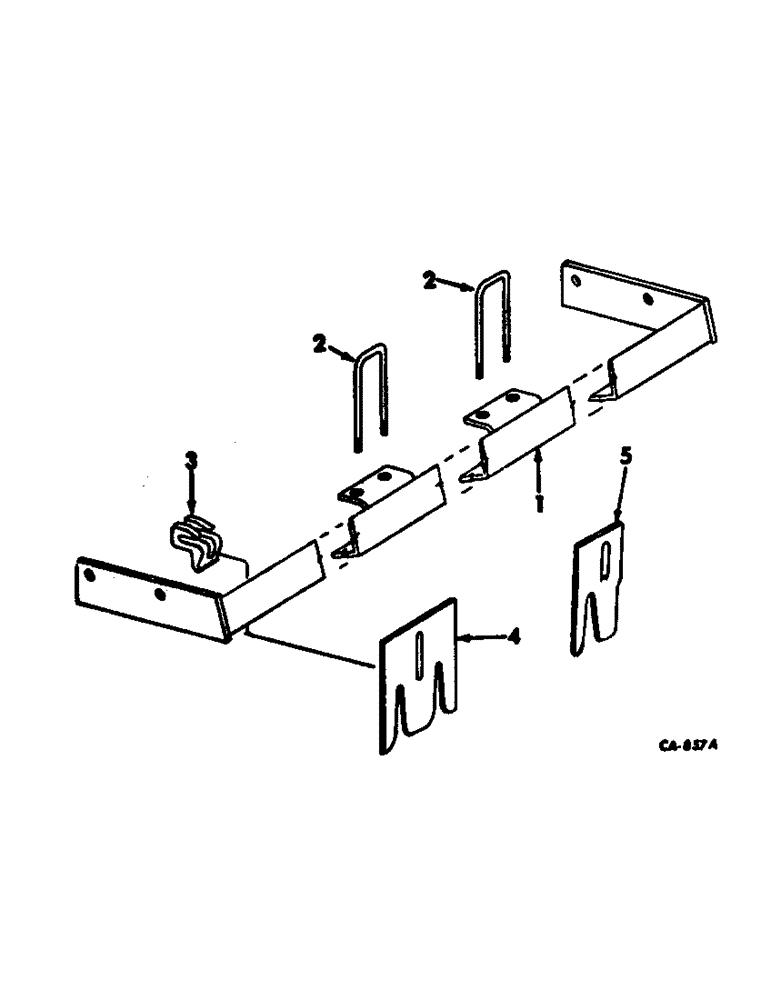

Запчасти Case IH 315 (A-20) - FRONT AND REAR SCRAPERS, UNITS A, B AND C

1

540376R4

ANGLE ASSY, scraper, for unit C

1шт.

1

540380R4

ANGLE ASSY, scraper, for unit B

1шт.

1

540382R4

ANGLE ASSY, scraper, for unit A

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

2

540291R1

BOLT,5/8" - 11 x 5.1"

U-BOLT, scraper angle

2шт.

3

540285R1

CLAMP

scraper, 1 per scraper

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach, 1 per clamp

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z, 1 per clamp

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z 2-way lock, 1 per clamp

1шт.

4

540286R2

BLADE

SCRAPER, front, 16 for unit A, 18 for unit B, 20 for unit C, rear, 18 for unit A, 20 for unit B, 22 for unit C

1шт.

5

544292R1

HALF BLADE

SCRAPER, front

2шт.
