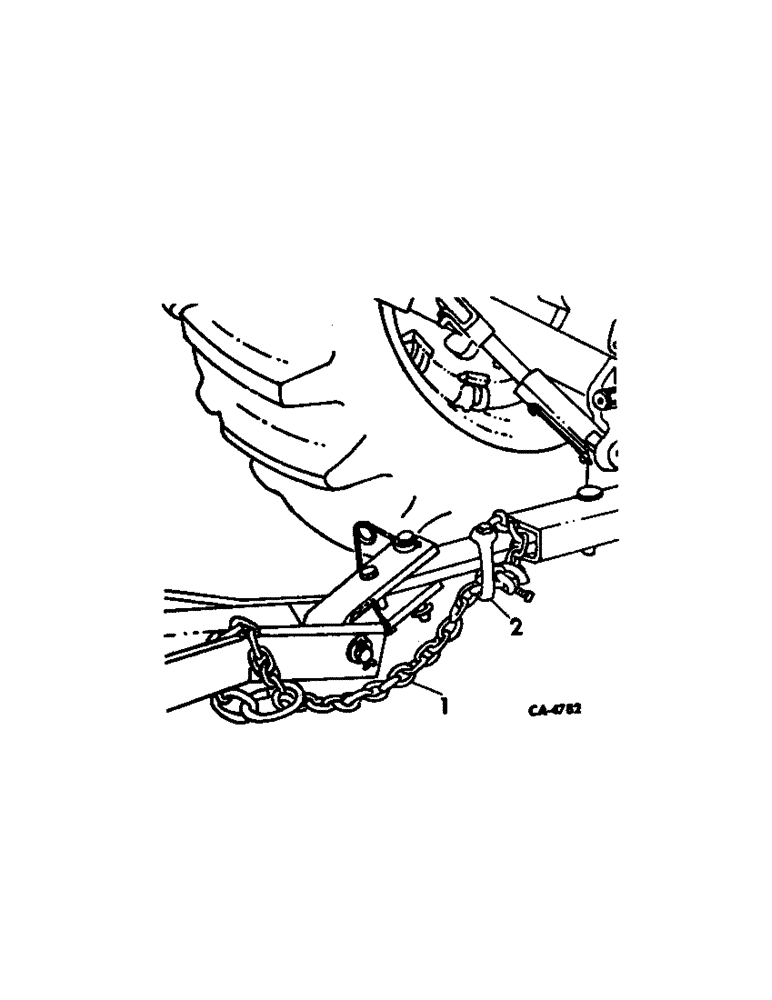

Запчасти Case IH 315 (A-19[A]) - SAFETY CHAIN

1

100682C1

CHAIN (AG)

CHAIN, safety

1шт.

2

S9173A

CLEVIS

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex-hd cap

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

26512R1

WASHER

.781 x 2 x .164 znd

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

1шт.

61913C91

CHAIN (AG)

PACKAGE, chain hardware, consists of clevis and attaching hardware

1шт.
