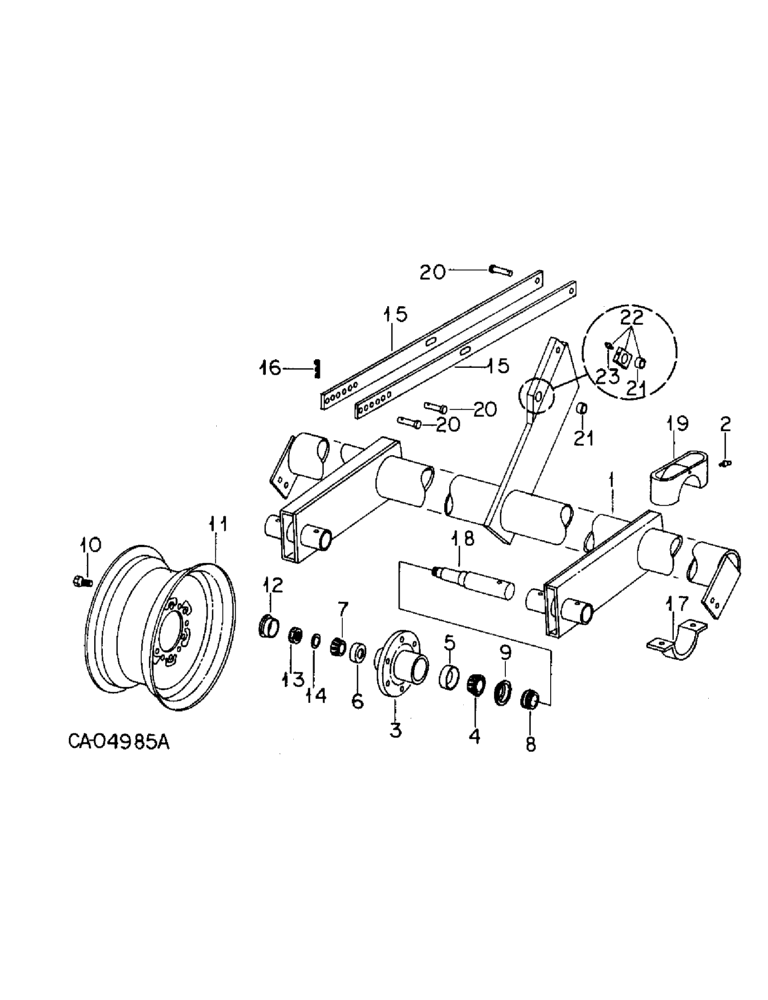

Запчасти Case IH 315 (A-18) - WHEEL AXLE AND TRANSPORT, FOLDING, UNITS D AND E

1

63520C1

AXLE ASSY, wheel

1шт.

2

16964R91

FITTING

1/4-28 ns 90 deg lub

3шт.

3

465496R1

HUB

6 bolt heavy

4шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, outer cone

4шт.

5

651817R1

BEARING CUP

BEARING, outer cup

4шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

6

663558R1

BEARING CUP

BEARING, inner cup

4шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, inner cone

4шт.

8

654674R91

OIL SEAL

wheel hub oil

4шт.

9

654675R1

RING

oil seal wear

4шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

24шт.

11

486101R1

RIM

WHEEL, 15 x 8 lb 6 bolt, recommend 11L-15 8 ply tubeless tire

4шт.

387841R91

VALVE

TR-413 w/core and cap

4шт.

12

663906R1

CAP

hub

4шт.

13

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt, hex, special

4шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

14

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga heat treated

4шт.

15

100747C1

BAR

caging and transport

2шт.

16

517843R1

COTTER PIN

PIN, quick attachable cot

1шт.

17

56922C1

CAP

STRAP, bearing

3шт.

271782

CASE,Hex, 3/4" - 10 x 4 3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4-10 x 6 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

4шт.

18

58666C1

SPINDLE

wheel

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

19

60127C1

COVER ASSY

BEARING, wheel shaft

3шт.

20

23474R1

HEADED PIN,7/8" x 3 3/4"

PIN, 7/8 x 2-3/4 znd hd

3шт.

495-11094

WASHER,7/8", SAE

.938 x 1.75 x .108 znd

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

21

112886C1

BUSHING

tension

1шт.

22

129607C91

PIVOT

ASSY, hyd cyl

1шт.

23

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

1шт.

63881C91

BEARING

KIT, wheel bearing, consists of (1) outer cone 371882R91, (1) outer cup 371883R1, (1) inner cone 618023R91, (1) inner cup 618024R1, (1) seal 667599R91, (1) ring 667564R1, (1) cap 663908R1, instructions (NSS)

1шт.
