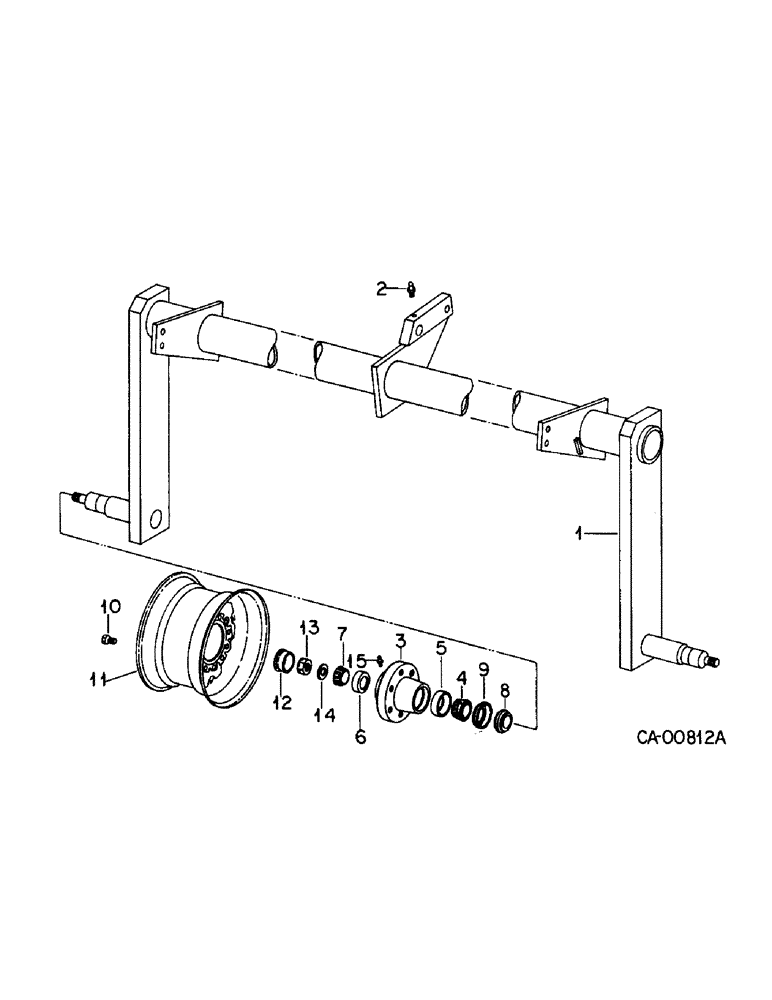

Запчасти Case IH 315 (A-17) - AXLE AND TRANSPORT WHEELS, NON-FOLDING, UNITS A, B AND C

1

540362R1

AXLE ASSY, wheel

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

2

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

3шт.

3

465493R2

HUB

wheel

2шт.

4

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Hub outer

2шт.

5

371883R1

BEARING CUP

Hub outer

2шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Hub inner

2шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, hub inner cone

2шт.

8

667599R91

OIL SEAL

wheel hub oil

2шт.

9

667564R1

RING

wear sleeve

2шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel hub

12шт.

11

481344R91

WHEEL

14 x 8 fb

2шт.

12

663908R1

CAP

wheel hub

2шт.

13

69442D

NUT

3/4-16 slt hex. jam

2шт.

14

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga ht

2шт.

15

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

2шт.

63881C91

BEARING

KIT, wheel bearing, consists of (1) outer cone 371882R91, (1) outer cup 371883R1, (1) inner cone 618023R91, (1) inner cup 618024R1, (1) seal 667599R91, (1) ring 667564R1, (1) cap 663908R1, instructions (NSS)

1шт.
