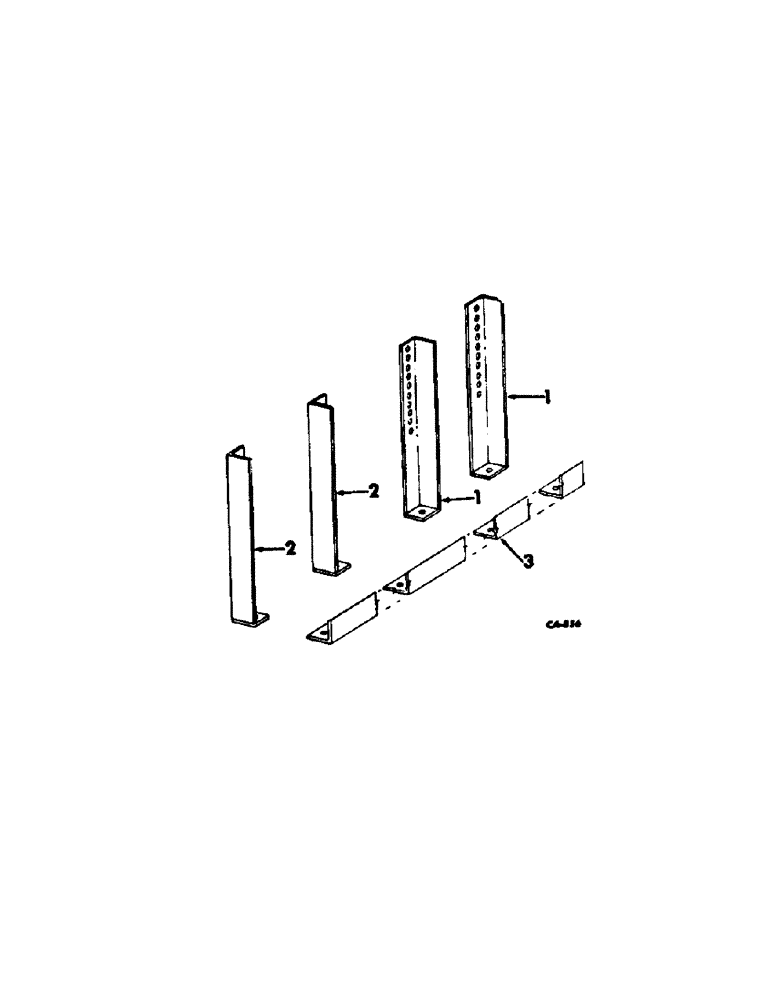

Запчасти Case IH 315 (A-16) - LEVELING BARS, UNITS A, B AND C

1

540384R1

BRACKET

ASSY, LH

2шт.

2

540385R1

BRACKET

ASSY, RH

2шт.

3

540388R1

ANGLE, leveling bar, for unit C

1шт.

3

540389R1

ANGLE, leveling bar, for unit B

1шт.

3

540390R1

ANGLE, leveling bar, for unit A

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, 8 for unit A, 6 for units B and C

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap, 4 for unit A, 6 for units B and C

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

12шт.
