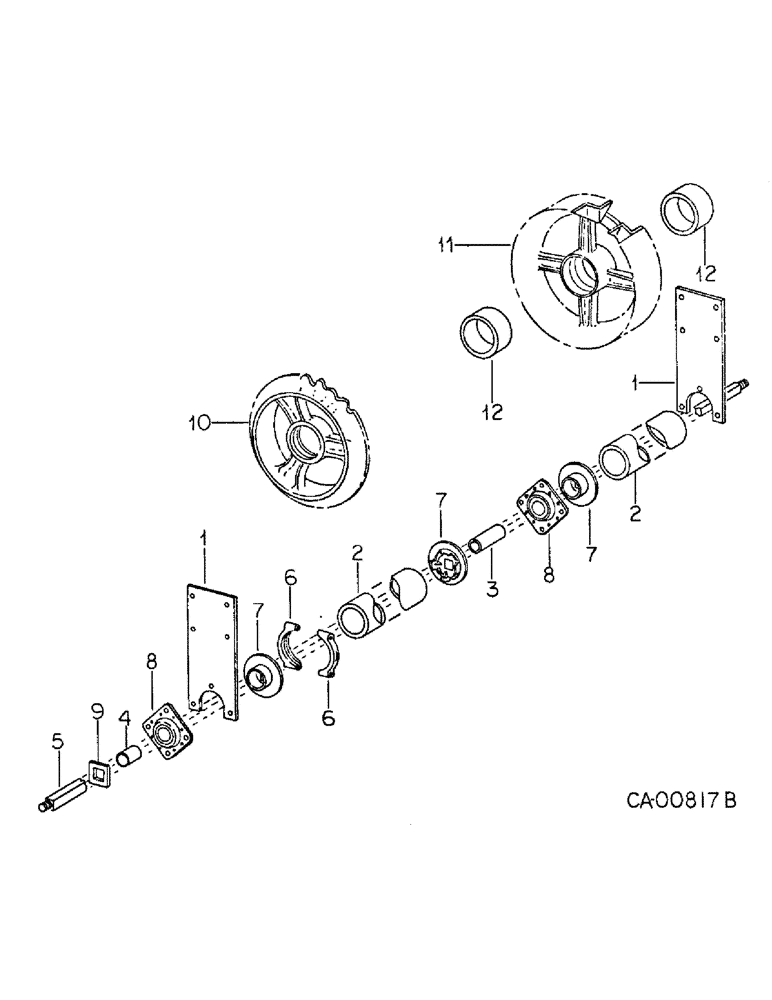

Запчасти Case IH 315 (A-14) - ARBOR BOLTS, BEARINGS PACKER AND CROWFOOT WHEELS, FRONT AND REAR

1

540349R2

BAR

STANDARD, brg, units A, B and C

4шт.

2

540352R2

TUBE

main gang 71.5 in., 4 for unit A, 2 for rear gangs on units D and E

1шт.

2

540351R2

TUBE

gang 79.5 in., 4 for unit B, 4 for wing gangs on unit E

1шт.

2

540350R2

TUBE

main gang 87.5 in., 4 for unit C

1шт.

2

63531C1

TUBE,4" OD, 50.1" Length

wing gang 50.1 in., 4 for gangs on unit D

1шт.

2

60025C1

TUBE,4" OD, 59.5" Length

main gang 59.5 in., 2 for frt gangs on units D and E

1шт.

3

462604R1

SPACER

arbor

2шт.

4

540354R1

SPACER

arbor, 4 for units A, B and C, 12 for units D and E

1шт.

5

112790C2

BOLT

main arbor 158.4 in. 2 for gangs on unit A, 1 for rear gangs on units D and E, also order, washers and nuts

2шт.

5

112791C1

BOLT

main arbor 174 in., 2 for gangs on unit B, also order, washers and nuts

2шт.

5

112792C1

BOLT

main arbor 190 in., 2 for gangs on unit C, also order washers and nuts

2шт.

5

121053C1

SQUARE BOLT,Arbor, Rnd Corner Sq, 1 1/8" - 7 x 134.60mm

main arbor 134.6 in, 1 for frt gangs on units D and E, also order washers and nuts

2шт.

5

121052C1

BOLT, wing arbor 60.5 in., 4 for gangs on unit D, also order washers and nuts

2шт.

5

112594C1

BOLT

wing arbor 89.9 in., 4 for gangs on unit E, also order washers and nuts

2шт.

492-11112

LOCK WASHER,1 1/8"

WASHER, 1-1/8 znd reg lock, 2 per bolt

1шт.

220094

NUT,1 1/8"-7, G5

1-1/8 znd hex., 2 per bolt

1шт.

6

540358R1

SUPPORT

axle, 8 for units A, B and C, 16 for units D and E

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5, 1 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 1 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per clamp 1/2"-13, G5

1шт.

7

540359R2

WASHER

axle, 8 for units A, B, and C, 16 for units D & E

1шт.

8

ST491A

BALL BEARING,45mm ID

BEARING, w/lub fitting, self aligning ball, 5 in. sq., 6 for A, B and C, 12 for D and E

1шт.

8

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

8

ST3018

BEARING

ball 5-1/2 in. sq., 2 for units D and E

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach, 3 per bearing

1шт.

120384

WASHER,1/2"

LOCK, , 3 per bearing 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 3 per bearing 1/2"-13, G5

1шт.

9

547255R2

SQ HOLE WASHER

end, 4 for A, B and C, 12 for D and E

1шт.

10

540360R2

WHEEL,370.84mm OD x 106.68mm W

packer, front or rear

1шт.

11

540419R1

WHEEL,416.56mm OD

crowfoot, front or rear

1шт.

12

540420R3

TUBE

gang spacer, front or rear

1шт.
