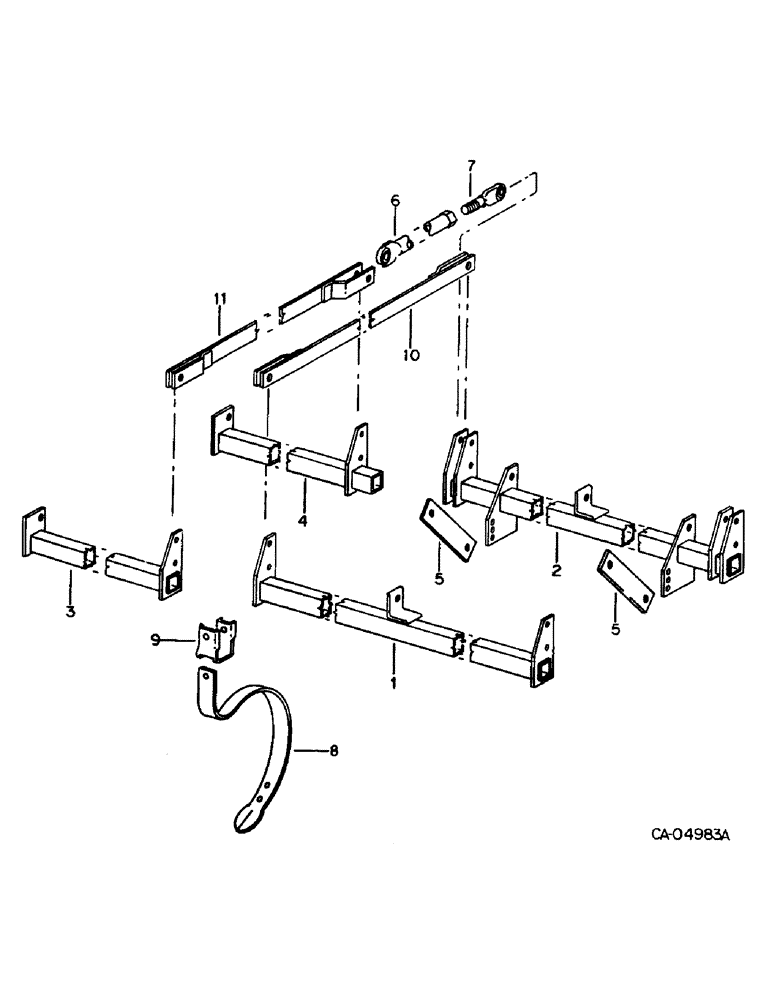

Запчасти Case IH 315 (A-12) - SPRING TEETH AND TOOTH BARS, FOLDING, UNITS D AND E

1

100780C1

BAR ASSY, folding ctr front tooth, serial no. 090000U013195 & below

1шт.

1

129994C1

BAR

TOOTHBAR ASSY, ctr front, serial no. 090000U013196 & above

1шт.

2

100774C1

BAR ASSY, folding ctr rear tooth, serial no. 0900000U013195 & below

1шт.

2

129993C1

TOOTHBAR ASSY, ctr rr, serial no. 090000U013196 & above

1шт.

121356C1

PIN

7/8 x 3.2 in

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

3

100921C1

BAR ASSY, frt wing 4 ft. tooth, serial no. 090000U013195 & below

2шт.

3

129995C1

BAR

TOOTHBAR, frt wing LH 4ft, serial no. 09000U013196 & above

1шт.

3

129996C1

BAR

TOOTHBAR, frt wing RH 4 ft, serial no. 090000U013196 & above

1шт.

3

100783C1

BAR ASSY, frt wing 7 ft. tooth, serial no. 090000U013195 & below

2шт.

3

129999C1

BAR

TOOTHBAR ASSY, frt wing LH 7 ft, serial no. 090000U013196 & above

1шт.

3

130000C1

BAR

TOOTHBAR ASSY, frt wing RH 7 ft, serial no. 090000U01396 & above

1шт.

4

100922C1

BAR ASSY, rear wing 4 ft. tooth, serial no. 090000U013195 & below

2шт.

4

129997C1

BAR

TOOTHBAR, rr wing LH 4 ft, serial no. 090000U013196 & above

1шт.

4

129998C1

BAR

TOOTHBAR, rr wing RH 4 ft, serial no. 090000U013196 & above

1шт.

4

100784C1

BAR ASSY, rear wing 7 ft. tooth, serial no. 09000U01395 & below

2шт.

4

139413C1

BAR

TOOTHBAR ASSY, rr wing LH 7 ft, serial no. 090000U01396 & above

1шт.

4

139414C1

BAR

TOOTHBAR ASSY, rr wing RH 7 ft, serial no. 090000U01396 & above

1шт.

5

63524C1

BAR, lower link, serial no. 090000U013195 & below

4шт.

5

139419C1

BAR, lower link, serial no. 090000U013196 & above

1шт.

23284R1

PIN, 7/8 x 1-3/4 znd hd

10шт.

22937R1

PIN, 7/8 x 2 znd hd

12шт.

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN, 7/8 x 3 znd hd

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

26шт.

6

101117C1

TUBE

ROD ASSY, 14.5 in. tube

2шт.

7

60423C3

EYEBOLT

ASSY, ball joint

2шт.

23474R1

HEADED PIN,7/8" x 3 3/4"

PIN, 7/8 x 2-3/4 znd hd

2шт.

131018

WASHER

.938 x 1.75 x .108 znd

12шт.

8

63203C1

TOOTH

spring, 31 for unit D, 39 for unit E

1шт.

9

74018C1

CLAMP

tooth, 1 per tooth

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 hex-hd cap

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 CDP hex. lock

1шт.

10

112550C1

BAR

ASSY, main frame set

2шт.

11

112551C1

BAR

ASSY, wing frame set

2шт.
