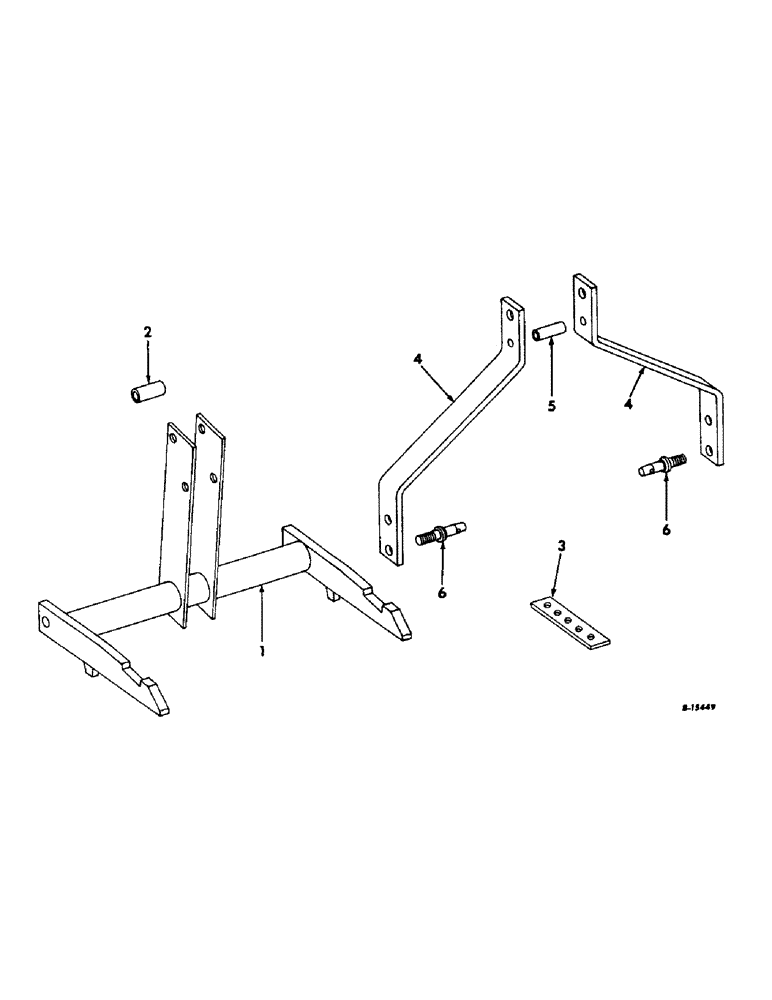

Запчасти Case IH 9 COIL (R-7) - HITCHES

1

480824R91

HITCH ASSY, two point fast

1шт.

271659

BOLT

SCREW, 7/8-9 x 2-3/4 hex-hd cap

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

2

480828R1

SPACER, upright bar, for two point fast hitch

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

3

480829R1

BAR, hitch, to mount 9 coil spring harrow to 15 implement carrier equipped w/tubular drawbar

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

480830R1

BRACE, mast, category I three-point hitch

1шт.

17527R1

BOLT, 7/8-9 x 2 hex-hd mach

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

5

462425R1

SPACER

mast, for category I three-point hitch

1шт.

6

468869R1

STUD

lower link, for category I three-point hitch

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing & pin adapter, for use w/category I implements when mounting on category II three point hitch, consists of

1шт.

380581R1

BUSHING

upper link category #1 short

1шт.

380582R1

BUSHING

upper link category #1 long

1шт.

380583R1

BUSHING

lower link category #1 short

2шт.

380584R1

BUSHING

lower link category #1 long

2шт.

380580R91

PIN

ASSY, upper link implement

1шт.

11484R

BUSHING

SPACER, lower link long bushing

2шт.
