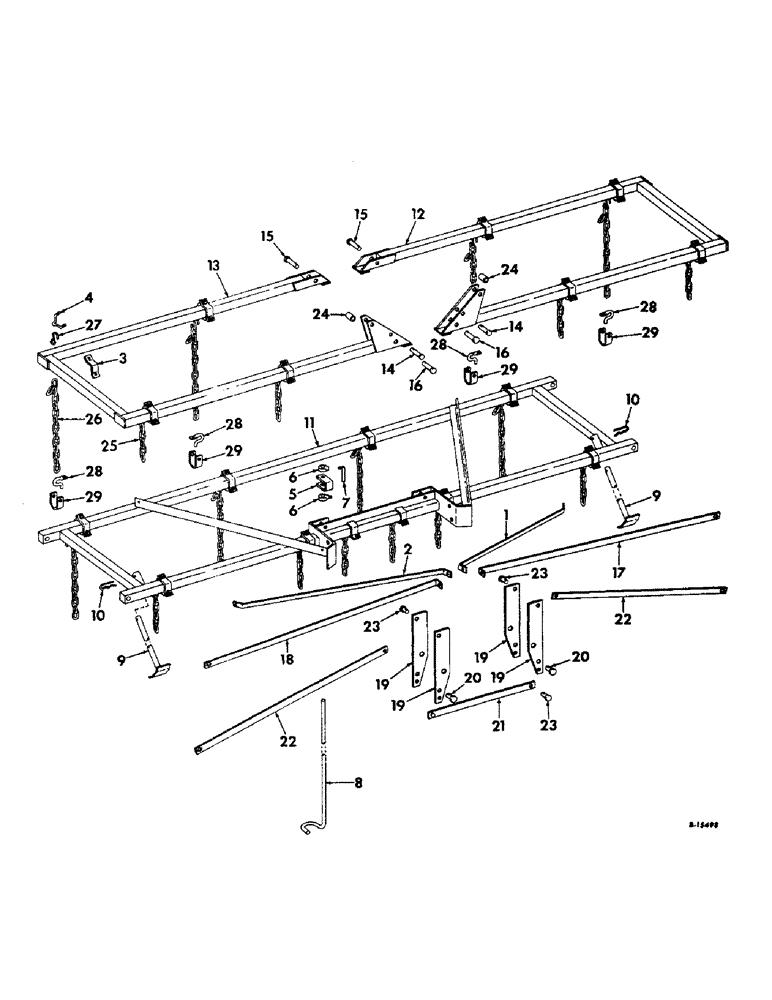

Запчасти Case IH 9 COIL (R-5) - DRAWBAR, 4-SECTION-FOLDING

1

480839R1

BAR, hitch LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

480840R1

BAR, hitch RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

3

480841R1

CLAMP, V

16шт.

4

480842R1

BOLT, V clamp

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

32шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

32шт.

5

480843R1

CELVIS, drawbar stand clamp

1шт.

6

2638X

COLLAR

ASSY, rear stand lower

1шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z cup-pt set

1шт.

7

481520R11

PIN ASSY, stand handle

1шт.

8

480845R1

STAND, rear

1шт.

9

480846R91

STAND ASSY, front

2шт.

10

520037R11

PIN ASSY, quick-attachable cot., in stand

2шт.

11

480848R91

FRAME ASSY, main

1шт.

12

480854R91

FRAME ASSY, LH extension

1шт.

13

480855R91

FRAME ASSY, RH extension

1шт.

14

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 C-Z std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

15

21675R1

PIN

3/4 x 3-1/4 C-Z std-hd rear

2шт.

16

21834R1

PIN, 3/4 x 3-11/16 C-Z std-hd front

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z, on front pin

4шт.

17

480860R1

BRACE, front frame LH

1шт.

18

480861R1

BRACE, front frame RH

1шт.

19

480862R1

LEVER, cylinder

4шт.

20

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 zn-plted std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21

480863R91

BAR ASSY, equalizer

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22

480866R1

BAR, lift link

2шт.

23

21380R1

PIN, 1/2 x 5/16 C-Z std-hd

3шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

24

H39274

SPACER,1/2" Pipe x 1 1/2"

lift link bar

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 C-Z hex-hd mach

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 cdp hex. lock

2шт.

25

480867R1

CHAIN, pull

8шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

8шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

26

480868R1

CHAIN, lift

8шт.

27

480869R1

HOOK, lift chain S

4шт.

28

480823R1

BRACKET, lift chain

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 C-Z hex-hd cap

4шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z stover automatic hex. lock

4шт.

29

(Not used in this application)

1шт.
