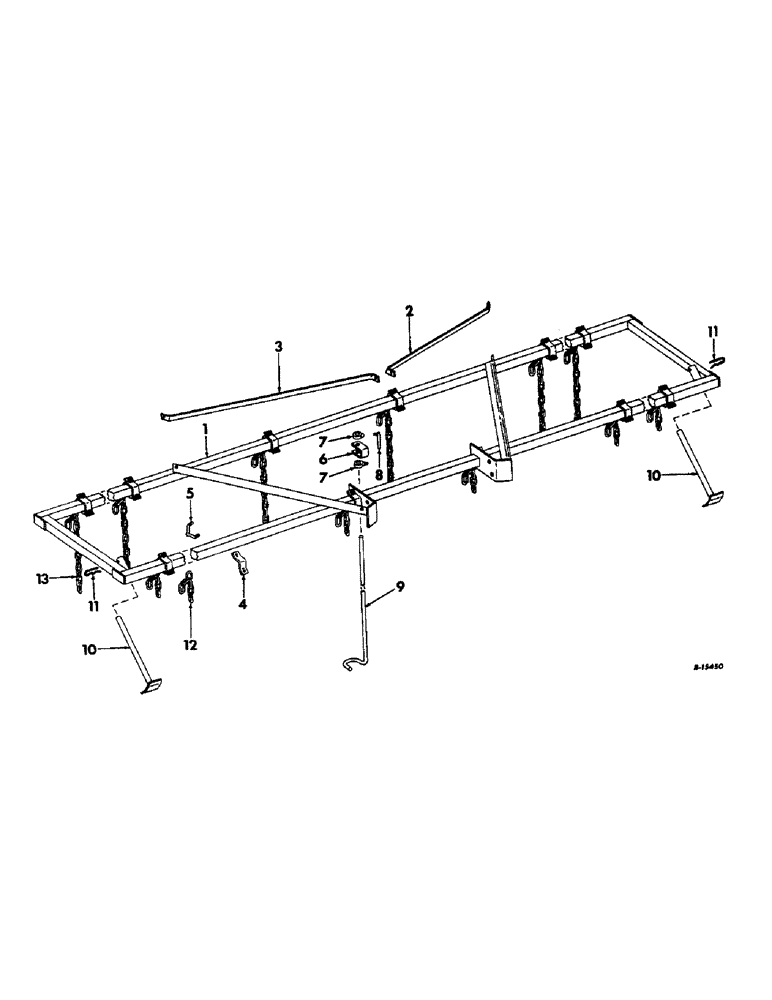

Запчасти Case IH 9 COIL (R-4) - DRAWBAR, 3-SECTION NON-FOLDING

1

480831R91

FRAME ASSY

1шт.

2

480839R1

BAR, hitch Lh

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

3

480840R1

BAR, hitch RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

480841R1

CLAMP, V

12шт.

5

480842R1

BOLT, V clamp

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

6

480843R1

CLEVIS, drawbar stand clamp

1шт.

7

2638X

COLLAR

ASSY, rear stand lower

1шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z cup-pt set

1шт.

8

481520R11

PIN ASSY, stand handle

1шт.

9

480845R1

STAND, rear

1шт.

10

480846R91

STAND ASSY, front

2шт.

11

520037R11

PIN ASSY, quick attachable cot., in stand

2шт.

12

480867R1

CHAIN, pull

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

6шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

13

480868R1

CHAIN, lift

6шт.
