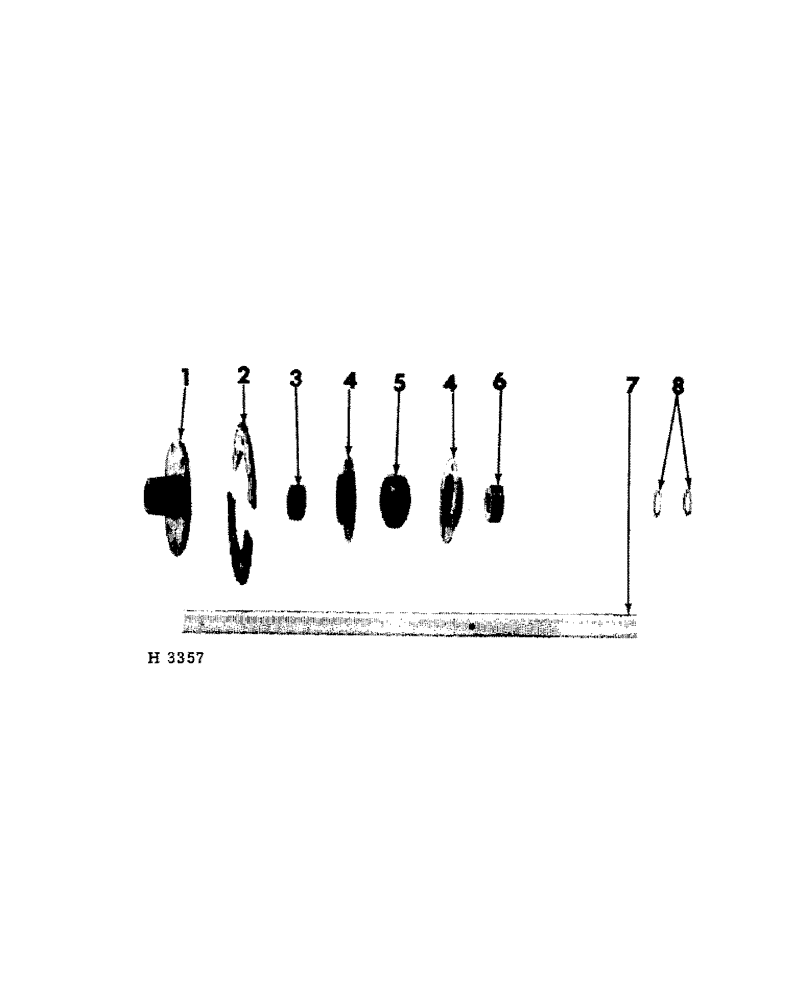

Запчасти Case IH 80 (09-03) - MAIN AXLE

1

603084R1

HUB, drive sprocket

1шт.

7/16 X 1" CD-PLTD CUP-PT SQ-HD SET SCREW

2шт.

7/16" CD-PLTD JAM NUT

2шт.

2

602463R1

SPROCKET, 11T drive (Regular)

2шт.

2

605640R1

SPROCKET, 13T drive (Special)

2шт.

7/16 X 1-3/8" CD-PLTD MACH BOLT W/NUT

6шт.

7/16" CD-PLTD LK-WASH.

6шт.

3

603083R1

SPACER

axle

2шт.

4

603088R1

FLANGE

PLATE, bearing mounting

6шт.

1/2 X 1-1/4" CD-PLTD CRG BOLT W/NUT

12шт.

1/2" CD-PLTD LK-WASH.

12шт.

5

ST625

BEARING

main axle

3шт.

6

603085R1

COLLAR, thrust

3шт.

7/16 X 1" CD-PLTD CUP-PT SQ-HD SET SCREW

6шт.

7/16" CD-PLTD JAM NUT

6шт.

7

608620R1

AXLE, 10-1/2 ft main

1шт.

7

603086R1

AXLE, 12 ft main

1шт.

7

603087R1

AXLE, 14 ft main

1шт.

8

WASHER, 1-9/32 x 16 ga cd-pltd

4шт.
