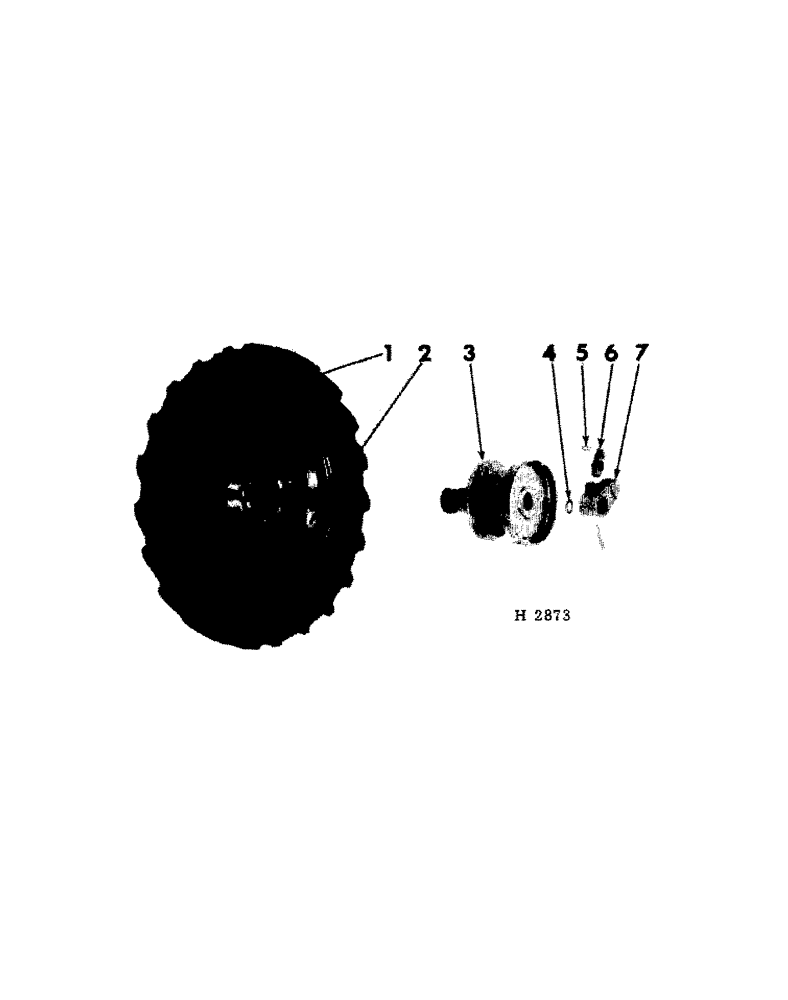

Запчасти Case IH 80 (09-03[B]) - PNEUMATIC DRIVE WHEEL

1

TIRE & TUBE, 6.70 x 15" pneumatic

2шт.

2

455169R92

WHEEL

DISK & RIM, 4.50 x 15" pneumatic

2шт.

3

602521R2

HUB, wheel

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

181430

BOLT,Hex, 1/2" - 20 x 1 3/8", Gr 5

1/2-NF X 1-3/8" TYPE 2 BOLT

8шт.

U18588

NUT

1/2"-NF SPECIAL NUT

8шт.

4

603044R1

THRUST WASHER

1-9/32 x 2-1/2 x 16 ga

2шт.

5

11-A

SPRING

ratchet carrier

2шт.

6

602683R1

PAWL

DOG, trip

2шт.

7

603040R21

CARRIER

ratchet

2шт.

3/8 X 3/8 X 1-1/2" STRAIGHT KEY

2шт.

7/16" CD-PLTD AM NUT

4шт.

7/16 X 1" CD-PLTD CUP-PT SET SCREW

4шт.
