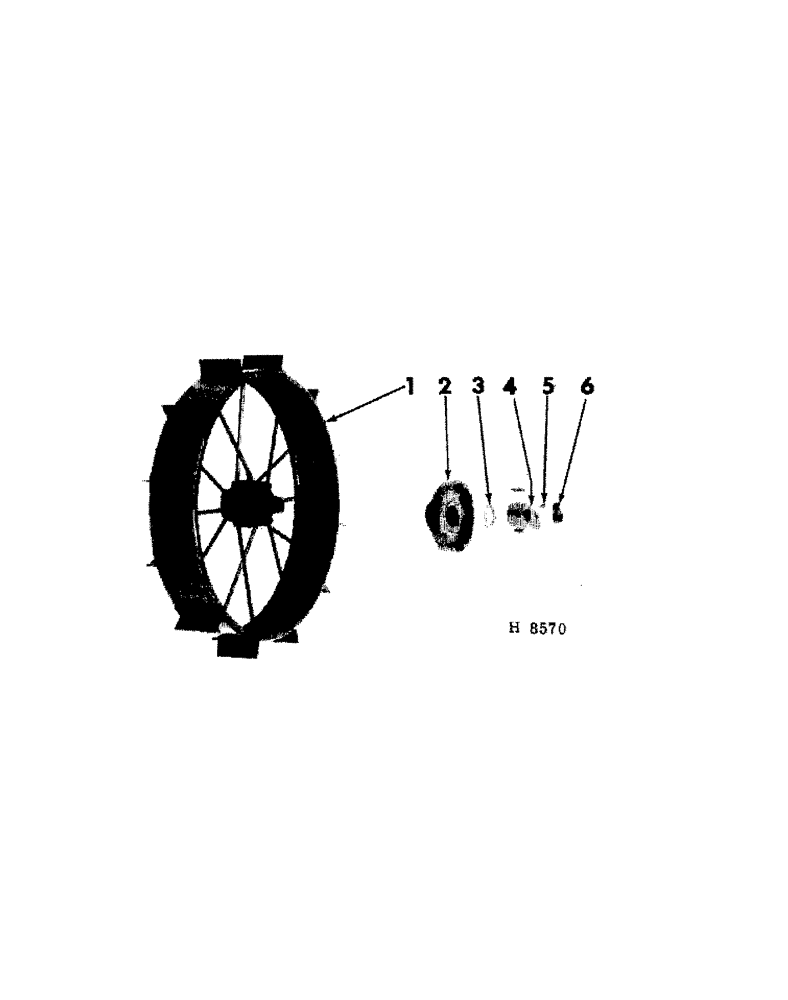

Запчасти Case IH 80 (09-03[A]) - STEEL DRIVE WHEEL

1

608618R91

WHEEL, 32 x 6" steel

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1/8" - 30 DEGREE LUB-FTG

2шт.

2

603014R1

CLUTCH

wheel

2шт.

3

603044R1

THRUST WASHER

1-9/32 x 2-1/2 x 16 ga.

2шт.

4

603040R21

CARRIER

ratchet

2шт.

3/8 X 3/8 X 1-1/2" STRAIGHT KEY

2шт.

7/16" CD-PLTD JAM NUT

4шт.

7/16 X 1" CD-PLTD CUP-PT SET SCREW

4шт.

5

11-A

SPRING

ratchet carrier

2шт.

6

602683R1

PAWL

DOG, trip

2шт.
