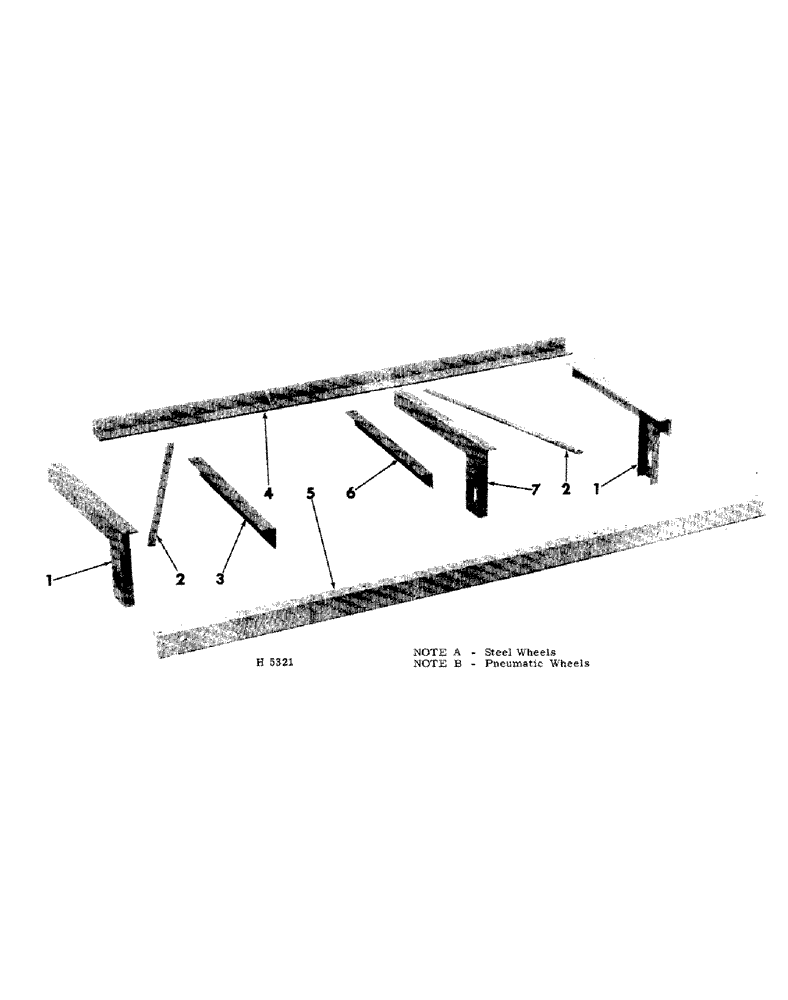

Запчасти Case IH 80 (09-02) - FRAME

1

605901R91

ANGLE, outside frame LH (Note A)

1шт.

1

608609R91

ANGLE, outside frame LH (Note B)

1шт.

1

605902R91

ANGLE, outside frame RH (Note A)

1шт.

1

608610R91

ANGLE, outside frame RH (Note B)

1шт.

1/2 X 1-3/8" MACH BOLT W/NUT

4шт.

1/2 X 1-3/4" MACH BOLT W/NUT

2шт.

1/2" LK-WASH.

6шт.

2

608617R1

STRAP, frame tie (10-1/2 ft)

2шт.

2

602693R1

STRAP, frame tie (12 ft)

2шт.

2

605562R1

STRAP, frame tie (14 ft)

2шт.

1/2 X 1-3/4" MACH BOLT W/NUT

4шт.

1/2" LK-WASH.

4шт.

3

605579R11

SILL, frame intermediate

1шт.

1/2 X 1-3/8" MACH BOLT W/NUT

2шт.

1/2 X 1-3/4" MACH BOLT W/NUT

1шт.

1/2" LK-WASH.

3шт.

4

608616R11

ANGLE, rear frame (10-1/2 ft)

1шт.

4

605576R11

ANGLE, rear frame (12 ft)

1шт.

4

605578R11

ANGLE, rear frame (14 ft)

1шт.

5

608606R1

ANGLE, front frame (10-1/2 ft)

1шт.

5

608607R1

ANGLE, front frame (12 ft)

1шт.

5

608608R1

ANGLE, front frame (14 ft)

1шт.

6

608615R11

ANGLE, boot support RH

1шт.

1/2 X 1-3/8" MACH BOLT W/NUT

3шт.

1/2" LK-WASH.

3шт.

7

608612R91

ANGLE, boot support LH (Note A)

1шт.

7

608614R91

ANGLE, boot support LH (Note B)

1шт.

1/2 X 1-3/8" MACH BOLT W/NUT

2шт.

1/2 X 1-3/4" MACH BOLT W/NUT

1шт.

1/2" LK-WASH.

3шт.
