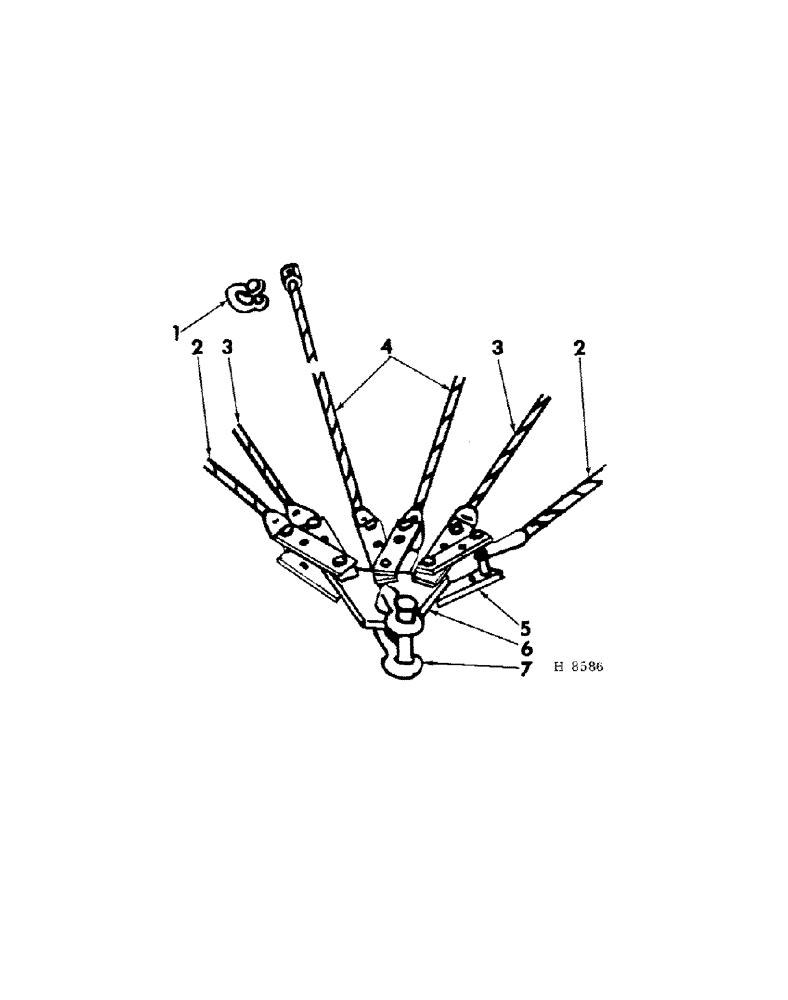

Запчасти Case IH 80 (09-09[B]) - CABLE HITCH (DUPLEX & TRIPLEX MACHINES)

1

WP28A

CLEVIS, cable rear (4 - A; 6 - B)

1шт.

1/2 X 1-1/2" STD-HD DLD PIN

1шт.

1/2 X 2-1/2" STD-HD DLD PIN

1шт.

3/16 X 1" C-PIN

1шт.

2

605630R11

CABLE, 10-1/2 ft outside (Note A)

2шт.

2

605635R11

CABLE, 10-1/2 ft outside (Note B)

2шт.

2

602746R11

CABLE, 12 ft outside (Note A)

2шт.

2

605638R11

CABLE, 12 ft outside (Note B)

2шт.

2

602748R11

CABLE, 14 ft outside (Note A)

2шт.

2

605639R11

CABLE, 14 ft outside (Note B)

2шт.

3

608657R11

CABLE, 10-1/2 ft intermediate (Note B)

2шт.

3

LA13553

CABLE, 12 ft intermediate (Note B)

2шт.

3

605638R11

CABLE, 14 ft intermediate (Note B)

2шт.

4

608654R11

CABLE, 10-1/2 ft inside LH (Note A)

1шт.

4

608655R11

CABLE, 10-1/2 ft inside RH (Note A)

1шт.

4

608666R11

CABLE, 10-1/2 ft inside (Note B)

2шт.

4

608656R11

CABLE, 12 ft inside (Note A)

2шт.

4

600381R91

CABLE, 12 ft inside (Note B)

2шт.

4

605632R11

CABLE, 14 ft inside (Note A)

2шт.

4

608658R1

CABLE, 14 ft inside (Note B)

2шт.

5

602744R1

STRAP, cable long (4 - Note A)

1шт.

5

L13527

STRAP, cable short (4 - A; 12 - B)

1шт.

1/2 X 2-1/8" STD-HD DLD PIN

1шт.

3/16 X 1" C-PIN

1шт.

6

L13528

PLATE, hitch (Note A)

1шт.

6

602753R1

PLATE, hitch (Note B)

1шт.

7

SA3203

CLEVIS, main draw

1шт.

3/4 X 3-1/2" STD-HD DLD PIN

1шт.

1/4 X 1-1/2" C-PIN

1шт.
