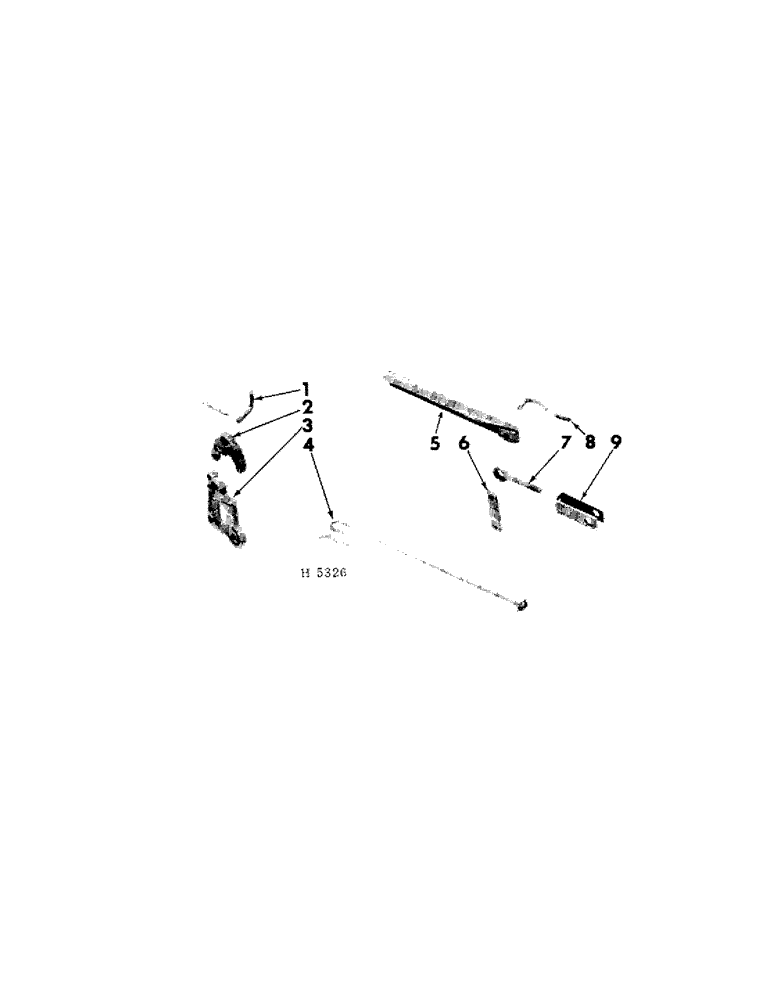

Запчасти Case IH 80 (09-08) - HYDRAULIC LIFT PARTS

1

602801R1

PIN

retainer locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.

2

526263R1

RETAINER

hyd-cyl

1шт.

1/2 X 2-1/4" STD-HD DLD PIN

1шт.

3/16 X 1-1/2" C-PIN

1шт.

3

602800R1

BRACKET

front anchor

1шт.

3/4 X 2" MACH BOLT W/NUT

2шт.

3/4" LK-WASH.

2шт.

4

651793R11

SUPPORT

hyd hose (Includes bolt, 17525R11 & washers, 103325 & 575812R1)

1шт.

5/8 X 2" MACH BOLT W/NUT

1шт.

21/32 X 1-1/2 X 11 GA WASH.

2шт.

5/8" LK-WASH.

1шт.

5

605619R11

SUPPORT, 10-1/2 ft quadrant

1шт.

5/8 X 1-3/8" MACH BOLT W/NUT

2шт.

5/8" LK-WASH.

2шт.

6

615735R1

STRAP, 12 & 14 ft flat

2шт.

1/2 X 2-1/2" MACH BOLT W/NUT

2шт.

1/2" LK-WASH.

2шт.

7

602514R1

EYEBOLT, 12 & 14 ft

1шт.

5/8" NUT

1шт.

1/8 X 1" C-PIN

1шт.

8

605945R1

ROD, 10-1/2 ft tie

1шт.

1/2" NUT

1шт.

17/32 X 7/8 X 16 GA WASH.

2шт.

1/8 X 1" C-PIN

2шт.

9

600831R2

LOOP, locking device

1шт.
