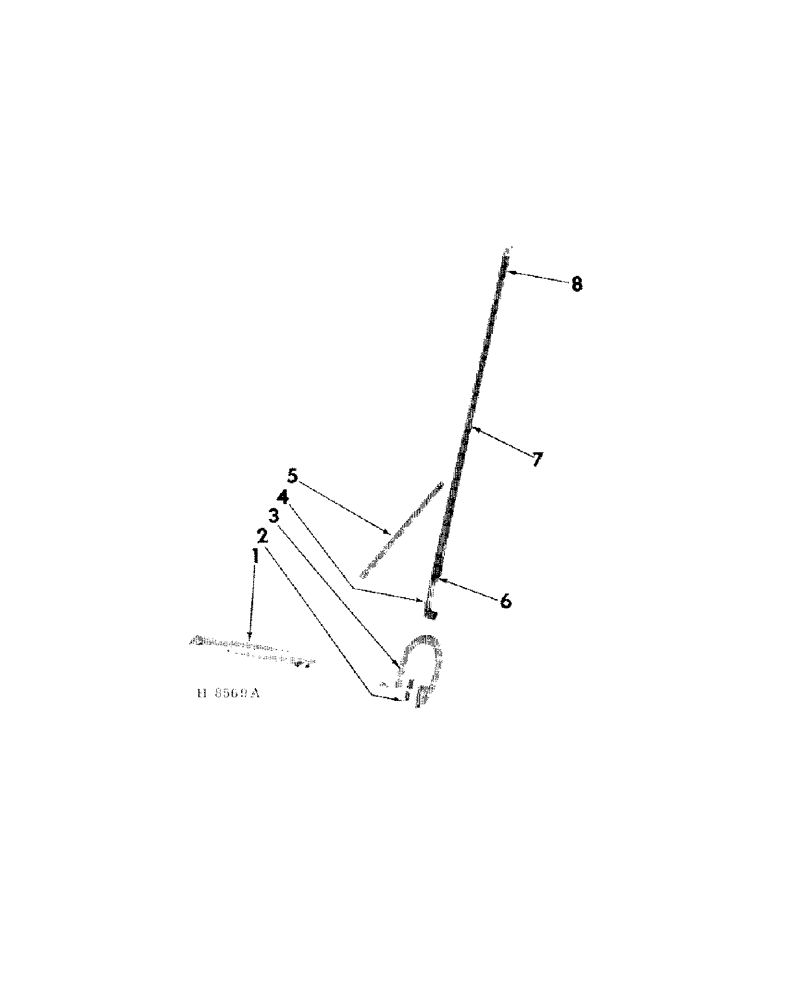

Запчасти Case IH 80 (09-07[A]) - HAND LIFT

1

605619R11

SUPPORT, quadrant (10-1/2 ft)

1шт.

5/8 X 1-3/8" MACH BOLT W/NUT

2шт.

5/8" LK-WASH.

2шт.

2

556973R1

STRAP, flat (12 & 14 ft)

1шт.

1/2 X 2-1/2" MACH. BOLT W/NUT

2шт.

1/2" LK-WASH.

2шт.

3

605622R1

QUADRANT, 10-1/2 ft, Serial Range: (Prior-1965)

1шт.

3

609978R1

QUADRANT, 10-1/2 ft (1965 & since)

1шт.

3

608644R11

QUADRANT, 12 & 14 ft, Serial Range: (Prior-1965)

1шт.

3

609979R11

QUADRANT, 12 & 14 ft (1965 & since)

1шт.

1/2 X 2" MACH BOLT W/NUT (10-1/2 ft)

1шт.

1/2 X 2-1/4" MACH BOLT W/NUT

1шт.

1/2 X 2-1/2" MACH BOLT W/NUT (12 & 14 ft)

2шт.

1/2" LK-WASH.

3шт.

4

608646R21

LEVER, hand lift

1шт.

5

605623R1

BRACE, lever, Serial Range: (Prior-1965)

1шт.

7/16 X 1-3/8" MACH BOLT W/NUT

1шт.

5/8 X 2" MACH BOLT W/NUT

1шт.

7/16" LK-WASH.

1шт.

5/8" LK-WASH.

1шт.

5

609977R1

STRAP, lever (1965 & since)

1шт.

609963R91

STRAP LOCKING PIN

1шт.

591107R1

COTTER PIN

QUICK-ATTACHBLE C-PIN

1шт.

5/8 X 1-3/4" DLD CRG BOLT

1шт.

5/8" SLT NUT

1шт.

1/8 X 1-1/4" C-PIN

1шт.

6

590564R1

STRAP, hammer

1шт.

3/8 X 1" TR-HD RIVET

2шт.

7

608647R1

PLUNGER, lever

1шт.

15/32 X 1 X 16 GA WASH.

3шт.

3/16 X 7/8" C-PIN

2шт.

8

RP5232

SPRING, lever plunger

1шт.
