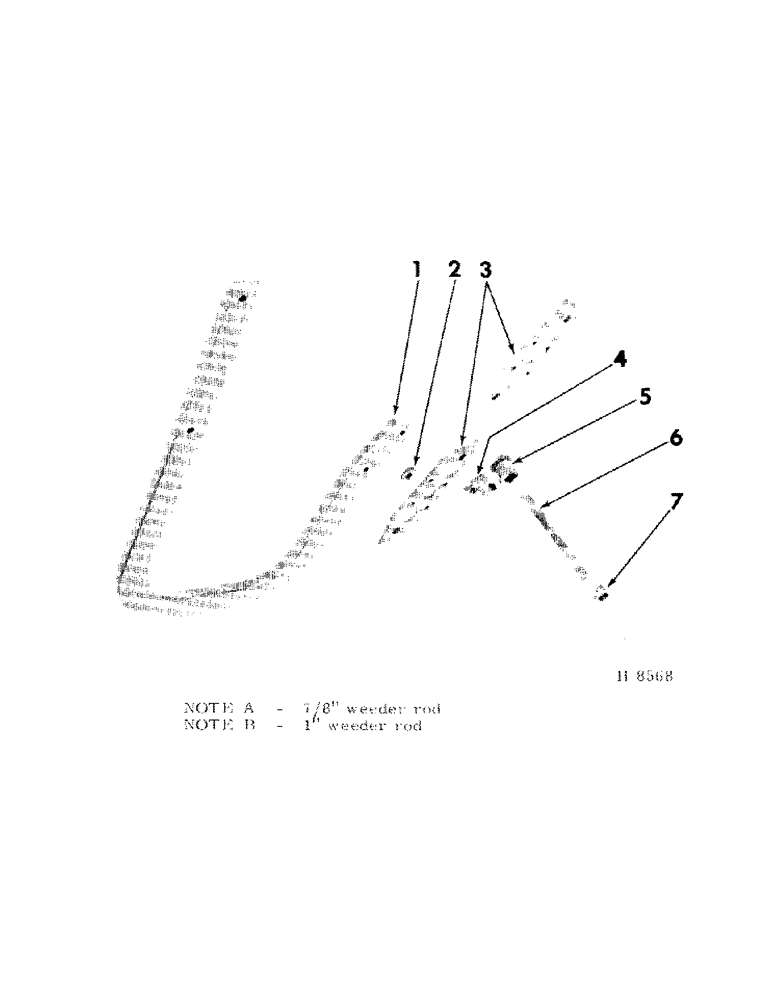

Запчасти Case IH 80 (09-06) - SHANK TOOTH AND ROD

1

608637R1

SHANK (2 - 10-1/2 ft; 3 - 12 ft & 14 ft)

1шт.

5/8 X 2-1/4" CD-PLTD MACH BOLT W/NUT (4 - 10-1/2 ft; 6 - 12 ft & 14 ft)

1шт.

3/8" CD-PLTD LK-WASH. (1 per bolt)

1шт.

2

LA3203

SPACER

BUSHING (2 - 10-1/2 ft; 3 - 12 ft & 14 ft)

1шт.

L13675

1/2 X 2" TYPE 2 CRG BOLT (2 - 10-1/2 ft; 3 - 12 ft & 14 ft)

1шт.

1/2" JAM NUT (1 per bolt)

1шт.

1/2" LK-WASH. (1 per bolt)

1шт.

3

607454R1

POINT

regular (1 per shank)

1шт.

3

608638R1

POINT, special rock type (1 per shank)

1шт.

L13674

1/2 X 1-7/8" TYPE 2 CRG BOLT (2 - 10-1/2 ft; 3 - 12 ft & 14 ft)

1шт.

1/2" JAM NUT (1 per bolt)

1шт.

1/2" LK-WASH. (1 per bolt)

1шт.

4

L3174

BEARING

point (2 - 10-1/2 ft; 3 - 12 ft & 14 ft)

1шт.

3/8 X 1-1/4" MACH BOLT 4 - 10-1/2 ft; 6 - 12 ft & 14 ft)

1шт.

3/8" JAM NUT (1 per bolt)

1шт.

3/8" LK-WASH. (1 per bolt)

1шт.

5

608639R1

SPOOL

point (Note A) (2 - 10-1/2 ft; 3 - 12 ft & 14 ft)

1шт.

5

L3175

SPOOL

point (Note B) (2 - 10-1/2 ft; 3 - 12 ft & 14 ft)

1шт.

6

608640R1

ROD, 10-1/2 ft weeder (Note A)

1шт.

6

607450R1

ROD, 10-1/2 ft weeder (Note B)

1шт.

6

602482R1

ROD, 12 ft weeder (Note A)

1шт.

6

607451R1

ROD, 12 ft weeder (Note B)

1шт.

6

602483R1

ROD, 14 ft weeder (Note A)

1шт.

6

607452R1

ROD, 14 ft weeder (Note B)

1шт.

7

605194R1

COLLAR (Note A)

1шт.

7

607453R1

COLLAR (Note B)

1шт.

3/8 X 1/2" CUP-PT HDLS SET SCREW

4шт.
