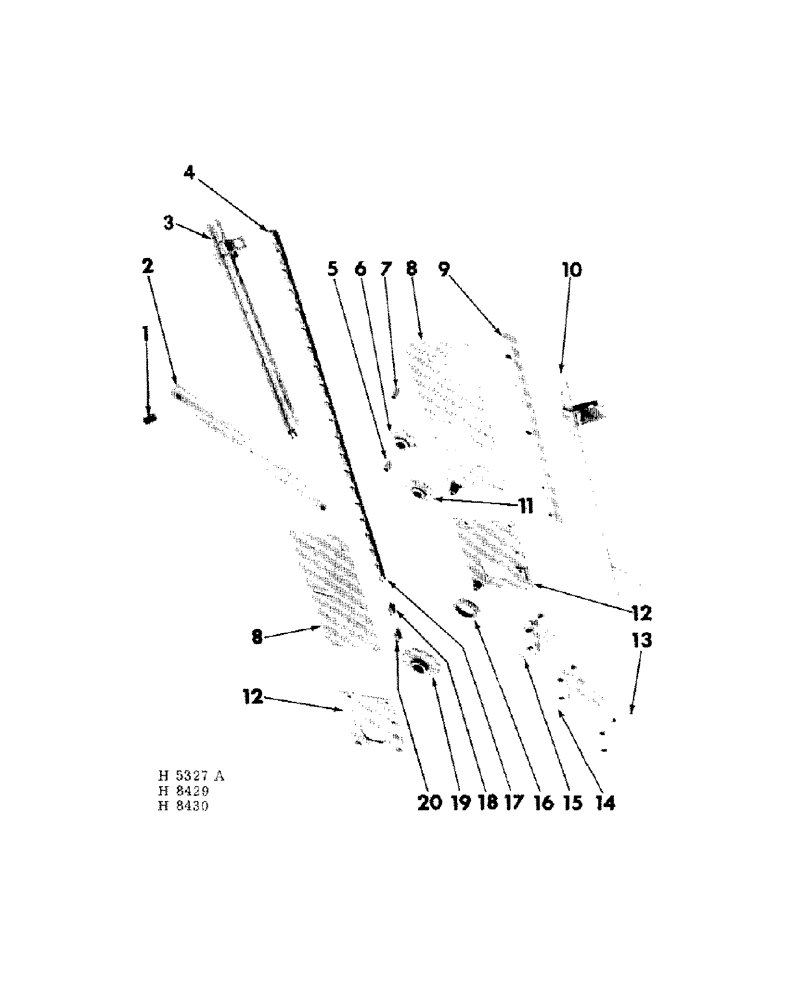

Запчасти Case IH 80 (09-05) - CENTER BOOT

1

PO18122

SPACER, boot brace

1шт.

2

608626R1

BRACE, boot

2шт.

1/2 X 3" MACH BOLT W/NUT

1шт.

1/2 X 3-3/4" MACH BOLT W/NUT

1шт.

1/2" LK-WASH.

2шт.

3

608659R11

SHIELD

boot chain rear

1шт.

605264R1

SCREW

3/8 X 3/4" B-HD BOLT

2шт.

3/8" EXT-TOOTH LK-WASH

2шт.

4

CHAIN, boot drive (1-1/4" extended pitch rollerless type) (For service order 1 - 605972R91, 10 ft length of chain, reduce to 57 links, add 3 - 602803R91, offset links and 1 - 602804R91 connecting link)

1шт.

5

605252R1

BUSHING

SPACER, upper chain drive sprocket

1шт.

6

602453R2

SPROCKET ASSY.

SPROCKET, 7T upper chain tightener

1шт.

1/2 X 2-1/4" MACH BOLT W/NUT

1шт.

17/32 X 1-1/4 X 16 GA WASH.

1шт.

1/2" LK-WASH.

1шт.

7

2437P

SPACER,3/8" Pipe x 1 156"

boot upper

1шт.

8

605595R91

PLATE, side upper LH

1шт.

8

608667R1

PLATE

side upper RH

1шт.

3/8 X 2-3/4" MACH BOLT W/NUT

2шт.

1/2 X 2-3/4" MACH BOLT W/NUT

2шт.

3/8" LK-WASH.

2шт.

1/2" LK-WASH.

2шт.

9

608630R1

BAR

boot

1шт.

10

608662R11

SHIELD

boot chain front

1шт.

1/2 X 3" MACH BOLT W/NUT

1шт.

1/2" LK-WASH.

1шт.

11

602453R2

SPROCKET ASSY.

SPROCKET, 7T lower chain tightener

1шт.

7/8 X 1-7/8" STD-HD DLD PIN

1шт.

1/4 X 2" C-PIN

1шт.

12

607457R11

PLATE

side lower LH

1шт.

12

607458R11

REINFORCEMENT

PLATE, side lower RH

1шт.

605263R1

SCREW

3/8 X 5/8" B-HD BOLT

2шт.

605264R1

SCREW

3/8 X 3/4" B-HD BOLT

4шт.

602700R1

SCREW

7/16 X 1-1/4" ALLEN-CSK-HD BLT

1шт.

3/8" EXT-TOOTH LK-WASH.

6шт.

7/16" EXT-TOOTH LK-WASH.

1шт.

13

608634R1

NOSE, rock type boot (Special)

1шт.

14

608635R1

NOSE, deep suck boot (Special)

1шт.

15

608633R1

SHOVEL

NOSE, boot (Regular)

1шт.

605275R1

HEX SOC SCREW,Flat Hd, 7/16"-14 x 1 3/8"

7/16 X 1-3/8" ALLEN-CSK-HD BOLT

2шт.

7/16" EXT-TOOTH LK-WASH.

2шт.

16

607456R1

BUSHING

boot sprocket

2шт.

17

602802R91

LINK, rollerless chain regular

57шт.

18

602803R91

LINK, rollerless chain offset

3шт.

19

608636R1

SPROCKET ASSY.

SPROCKET, 11T boot (7/8" weeder rod)

1шт.

19

607455R1

SPROCKET ASSY.

SPROCKET, 11T boot (1" weeder rod)

1шт.

20

602804R91

LINK, rollerless chain connecting

1шт.

602610R92

MOUNTING, safety light (Composed of all parts listed below)

1шт.
