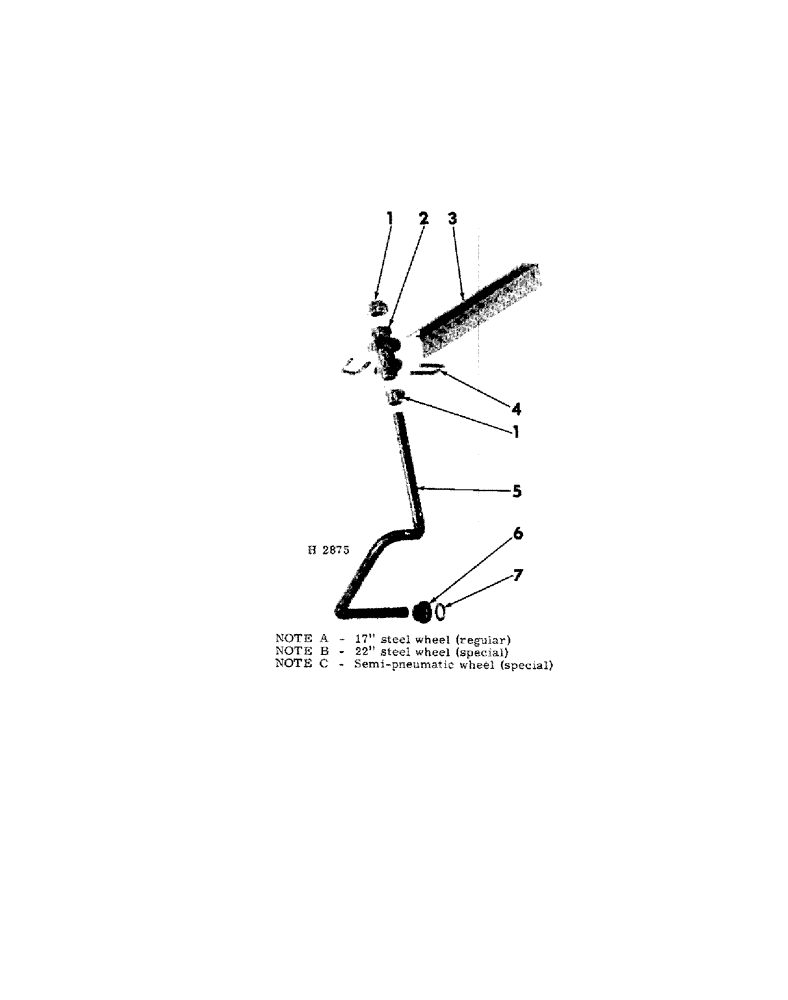

Запчасти Case IH 80 (09-04) - CASTER WHEEL AXLE

1

45M

COLLAR

axle (4 - note A & C, 2 - note B)

1шт.

1/2 X 3/4" SQ-HD CUP-PT SET SCREW (4 - note A & C, 2 - note B)

1шт.

2

602455R1

BRACKET

caster wheel axle

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

608641R1

ANGLE, transport extension LH (Note A & C)

1шт.

3

608642R1

ANGLE, transport extension RH (Note A & C)

1шт.

1/2 X 1-1/8" MACH BOLT W/NUT

2шт.

1/2" LK-WASH.

2шт.

4

602467R1

BOLT

"U" BOLT, axle bracket

4шт.

1/2" CD-PLTD NUT

1шт.

1/2" CD-PLTD LK-WASH.

8шт.

5

602524R1

AXLE, caster wheel

2шт.

6

602525R1

COLLAR

axle washer

2шт.

1/4 X 2" SLT-SPG PIN

2шт.

7

WASHER, 1-9/32 x 1-7/8 x 16 ga

4шт.
