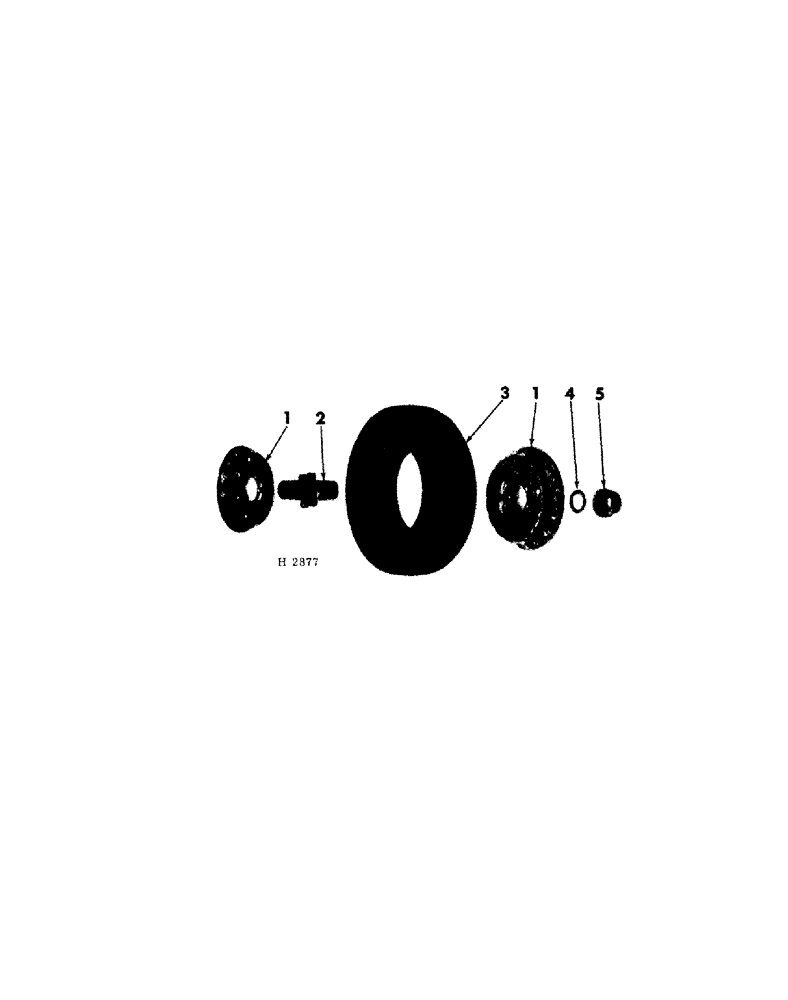

Запчасти Case IH 80 (09-04[B]) - CASTER WHEEL (SEMI-PNEUMATIC)

1

602542R1

DISK, wheel (Optional w/602543R1, disk, but in pairs only)

1шт.

3/8 X 5/8" CD-PLTD MACH BOLT W/NUT

8шт.

3/8" CD-PLTD LK-WASH.

8шт.

1

602543R1

DISK, wheel (Optional w/602542R1, disk, but in pairs only)

4шт.

1/4 X 5/8" CD-PLTD MACH BOLT W/NUT

8шт.

1/4" CD-PLTD LK-WASH.

8шт.

2

602551R1

HUB, caster wheel

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1/8" - 30 DEGREE LUB-FTG

2шт.

1/4 X 1-1/2" CD-PLTD MACH BOLT W/NUT

12шт.

1/4" CD-PLTD LK-WASH

12шт.

3

TIRE, 4.00 x 16" zero pressure

1шт.

4

WASHER, 1-9/32 x 1-7/8 x 16 ga

4шт.

5

602525R1

COLLAR

axle washer

2шт.

1/4 X 2" SLT-SPG PIN

2шт.
