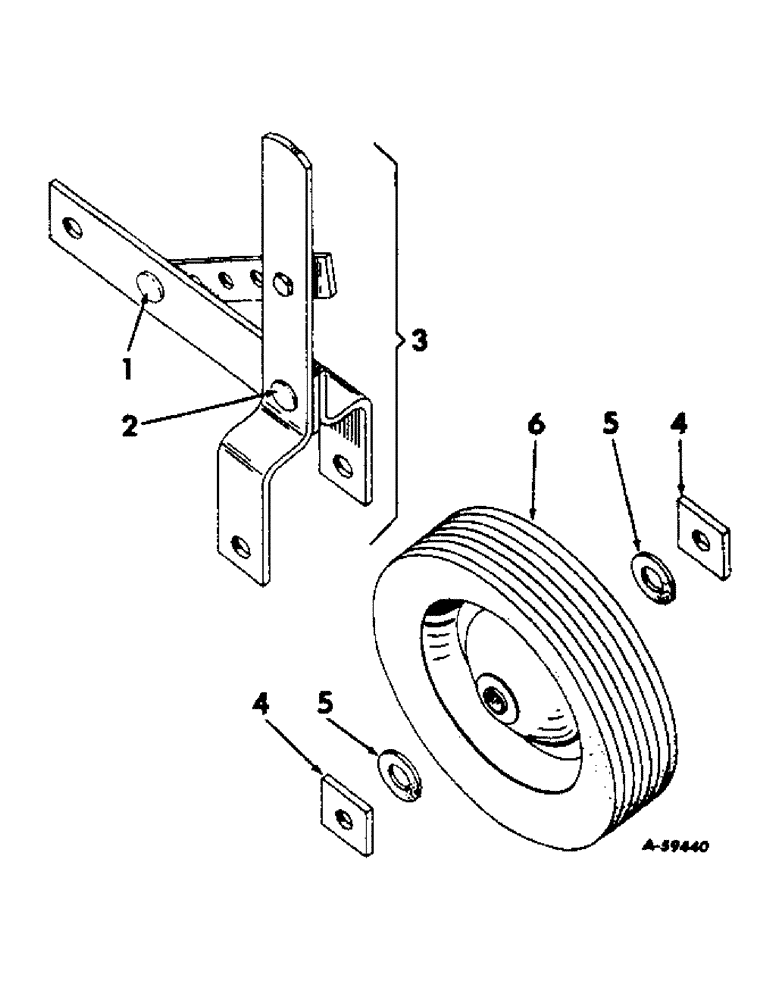

Запчасти Case IH 8 COIL (B-7) - GAUGE WHEEL, PRODUCT GRAPHICS

1

457623R1

RIVET, 3/8 x 53/64, special, step

2шт.

2

459758R1

RIVET, 3/8 x 7/8, special, step

2шт.

3

461691R91

BRACKET ASSY, set

2шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

1/2-13 x 3-3/4 hex-hd mach

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13 x 1 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

455388R1

NUT

1/2-13 hex

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q3428

PIN

7/16 x 7/8 dld std-hd

2шт.

520175R1

CLIP

PIN, 3/16 qa cotter

2шт.

4

R1216M

SPACER, order 464010R1

1шт.

4

464010R1

SPACER

4шт.

5

461695R1

WASHER, 19/32 x 1-1/4 x 1/8 felt

4шт.

6

461698R91

WHEEL W/BALL BEARINGS, gauge

2шт.

2751119R1

PRODUCT GRAPHIC, model designation, on tooth bar angle

1шт.

2751044R1

PRODUCT GRAPHIC, Mc Cormick International, on tooth bar angle

1шт.

1001412R2

DECAL

PRODUCT GRAPHIC, IH, on center tube assy

1шт.
