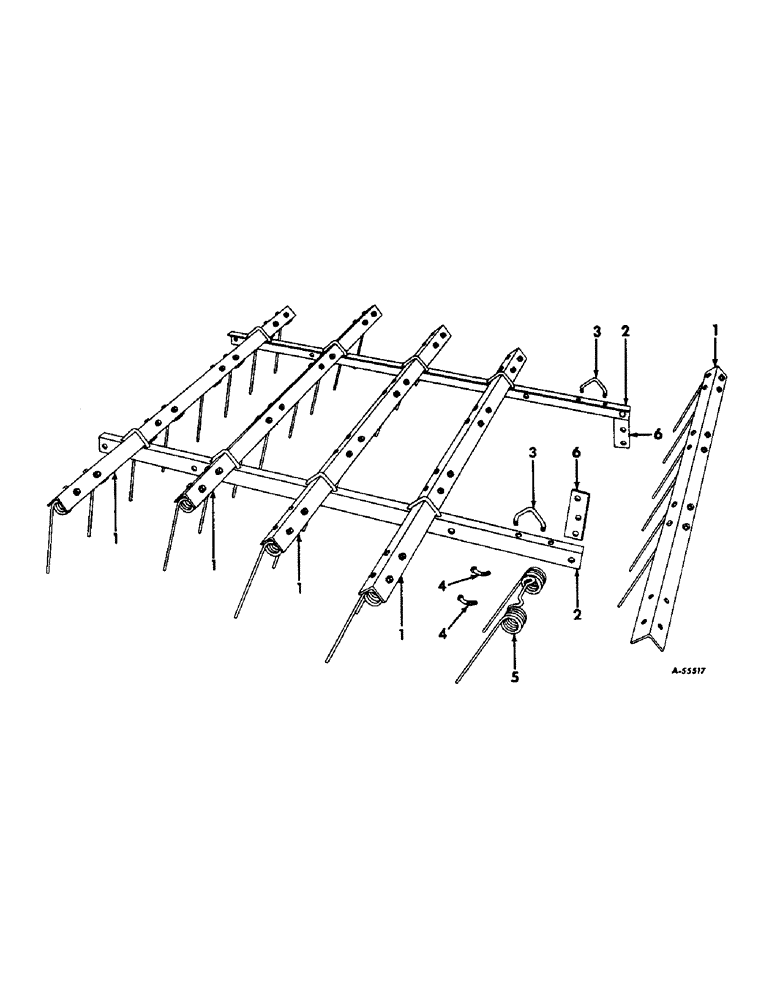

Запчасти Case IH 8 COIL (B-6) - 5 FT. 3 INCH SECTION

1

461203R1

ANGLE, tooth bar

5шт.

2

461202R1

FRAME, angle

2шт.

3

461204R1

V-BOLT, angle frame and tooth bar angle

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex

20шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

20шт.

4

461206R1

SCREW, 3/8 x 2 special hex-hd cap

40шт.

102632

NUT, 3/8-16 hex

40шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

40шт.

5

461205R1

TOOTH

coil spring

20шт.

6

461207R11

BRACKET ASSY, draft

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13 x 1 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
