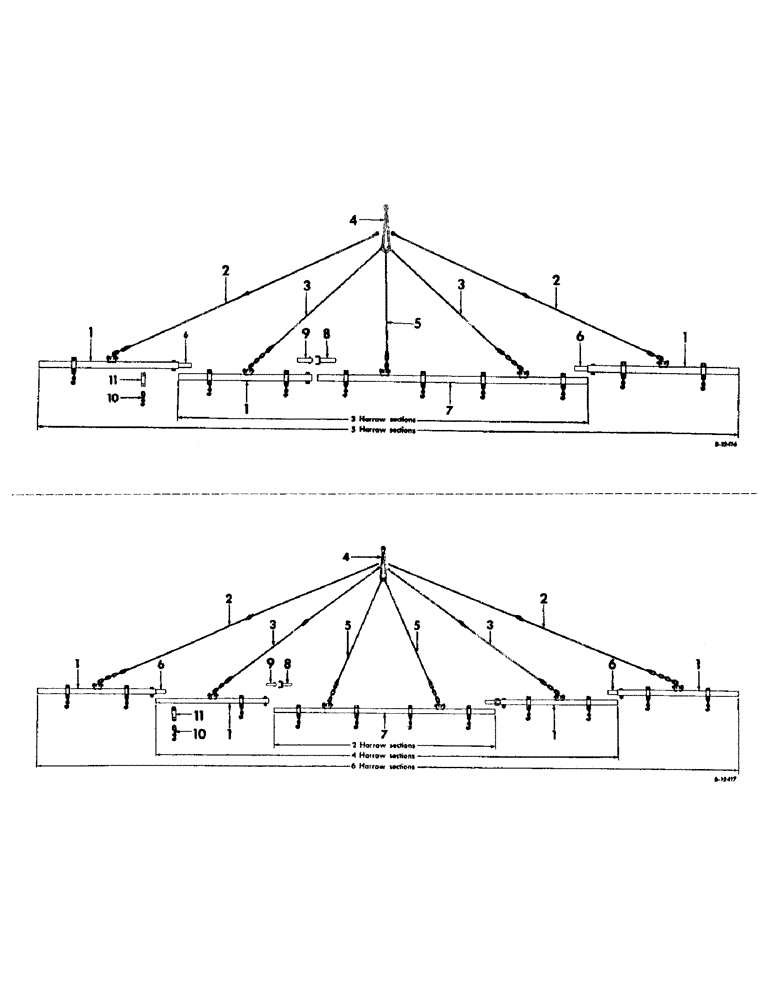

Запчасти Case IH 8 COIL (B-4) - TUBULAR DRAWBARS, 1961 AND SINCE
№
Артикул
Название
Примечание
Количество
1
464934R11
EXTENSION, tube drawbar, for 5 ft. 3 in., Serial Range: 1958-1962
1шт.
1
469290R91
EXTENSION, tube drawbar, for 5 ft. 3 in., 1962 and since, 1 for unit B, 2 for unit C, 3 for unit D and 4 for unit E
1шт.
18812R1
BOLT,Hex, 1/2" - 13 x 3", Gr 2
1/2-13 x 3 C-Z hex-hd mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 used for unit B; 2 for units C and D; 4 for unit E 1/2"-13, G5
1шт.
21632R1
COTTER PIN
PIN, 3/16 x 1 C-Z self-opening cot, 1 used for unit B, 2 for unit C, 3 for unit D, 4 for unit E
1шт.
21816R1
HEADED PIN,1/2" x 1 3/8"
PIN, 1/2 x 1-3/8 C-Z std-hd, 1 for unit B, 2 for unit C, 3 for unit D and 4 for unit E
1шт.
D3376
LARGE PIN
PIN, 1/2 x 2-3/4 dld std-hd, 2 for units D and E
1шт.
PO14926
SPLIT PIN/SAFETY PIN
PIN, 1/2 x 3-1/2 dld std hd, 1 used for unit B, 2 for unit C, 3 for unit D and 4 for unit E
1шт.
460309R1
COTTER PIN
PIN, 11/64 x 1-1/8 quick attachable cotter, 2 used for units D and E
1шт.
120384
WASHER,1/2"
LOCK, , 1 for unit B, 2 for units C and D, 4 for unit E 1/2"
2шт.
WASHER, 17/32 x 1 x 16 ga, 2 for unit B, 4 for unit C, 6 for unit D and 8 for unit E
1шт.
2
464948R91
BAIL ASSY, for 5 ft. 3 in., 2 used for unit D
1шт.
2
464949R91
BAIL ASSY, for 5 ft. 3 in., 2 used for unit E
1шт.
3
464942R92
BAIL ASSY, for 5 ft. 3 in., 2 for units B and D
1шт.
3
464946R92
BAIL ASSY, for 5 ft. 3 in., 2 for units C and E
1шт.
4
464957R1
CLEVIS, 18 in. (used per harrow)
1шт.
468264R1
BOLT, 3/4 x 4 dld special
1шт.
280954
NUT,3/4"-10, G5
1шт.
21821
DRIVE SHAFT
PIN, 1/8 x 1-1/2 C-Z self-opening cot, 1 used for units A, B, C, D, and E
1шт.
5
464940R92
LINK, bail, for 5 ft. 3 in., 2 used for units A, C, and E
1шт.
5
464944R92
LINK, bail, for 5 ft. 3 in., 1 used for units B and D
1шт.
6
464935R1
REINFORCEMENT, drawbar, 2 used for units D and E
1шт.
7
464927R11
DRAWBAR, center tube, for 5 ft. 3 in., 1958 to 1962, 1 used for units A, B, C, D and E
1шт.
7
469293R91
DRAWBAR, center tube, for 5 ft. 3 in., 1962 and since, 1 used for units A, B, C, D and E
1шт.
1812R1
BOLT, 1/2-13 x 3 C-Z hex-hd mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 used for unit B; 2 for units C, D, and E 1/2"-13, G5
1шт.
21816R1
HEADED PIN,1/2" x 1 3/8"
PIN, 1/2 x 1-3/8 C-Z std-hd, 2 for units A, B, C, D and E
1шт.
PO14926
SPLIT PIN/SAFETY PIN
PIN, 1/2 x 3-1/2 dld-std-hd, 2 for units A, B, C, D and E
1шт.
21632R1
COTTER PIN
PIN, 3/16 x 1 C-Z self-opening cot, 2 for units, A, B, C, D and E
1шт.
WASHER, 17/32 x 1 x ga, 4 for units A, B, C, D and E
1шт.
120384
WASHER,1/2"
LOCK, , 1 used for unit B, 2 for units C, D and E 1/2"
1шт.
8
464929R91
HINGE, insert outer, 1 used for units B and D, 2 for units C and E
1шт.
21632R1
COTTER PIN
PIN, 3/16 x 1 C-Z self-opening cot, 1 for units B and D, 2 for units C and E
1шт.
21942R1
HEADED PIN,1/2" x 3 3/4"
PIN, 1/2 x 3-3/4 C-Z std-hd, 1 for units B and D, 2 for units C and E
1шт.
9
464932R91
HINGE, insert inner, 1 for units B and D, 2 for units C and E
1шт.
10
459844R91
HOOK
ASSY, section (used per section)
2шт.
11
463468R1
CLAMP
draw (used per section)
4шт.
18794R1
BOLT,Hex, 7/16" - 14 x 1", Gr 2
7/16-14 x 1 C-Z hex-hd mach (used per section)
2шт.
18796R1
BOLT,Hex, 7/16"-14 x 1 1/2", G2
7/16-14 x 1-1/2 C-Z hex-hd mach (used per section)
2шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex (used per section)
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, , used per section 7/16"
4шт.
Выбрано товаров: 41
