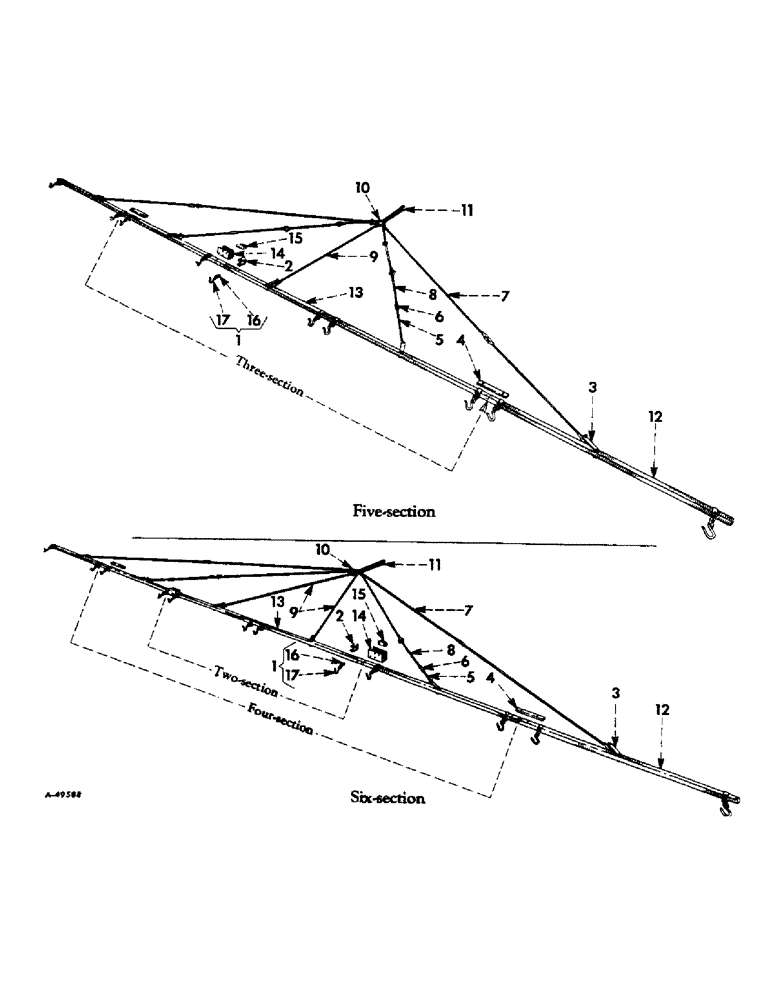

Запчасти Case IH 8 COIL (B-2) - RECTANGULAR DRAWBARS, 1958 TO 1961
№
Артикул
Название
Примечание
Количество
1
459844R91
HOOK
ASSY, section (used per section)
2шт.
2
459843R1
CLAMP, section (used per section)
2шт.
BOLT, 7/16-14 x 2-1/2 C-Z hex-hd mach
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 C-Z hex
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, , used per section 7/16"
2шт.
3
459850R1
STRAP, drawbale (used per section)
2шт.
PIN, 3/16 x 1-1/4 cotter (used per section)
2шт.
517843R1
COTTER PIN
PIN, 3/16 x 2-7/8 quick-attachable cotter, 1 used for units B and D, 2 for units C and E
1шт.
Q541
PIN, 1/2 x 2-3/16 dld std-hd (used per section)
2шт.
4
459841R1
INSERT, drawbar, for 5 ft. 3 in., 2 used for units D and E
1шт.
5
459848R1
BAIL ASSEMBLY, 21-3/4 long W/LH-thd, for 5 ft. 3 in., 2 used for units B, C, D, and E
1шт.
5
459849R1
BAIL ASSEMBLY, 10-1/2 long W/LH thd, for 5 ft. 3 in., 2 used for units C and E
1шт.
6
M383D
TURNBUCKLE
2 used for units B, C, D and E
1шт.
7
459830R91
BAIL ASSEMBLY, for 5 ft. 3 in., 2 used for unit D
1шт.
7
459838R91
BAIL ASSEMBLY, for 5 ft. 3 in., 2 used for unit E
1шт.
8
459812R91
BAIL ASSEMBLY, one end threaded, 2 used for units C and E
1шт.
8
459827R91
BAIL ASSEMBLY, one end threaded, for 5 ft. 3 in., 2 used for units B and D
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 6 used for A; 2 used for units B, C, D, and E 1/2"-13, G5
1шт.
9
459818R91
BAIL ASSEMBLY, center, for 5 ft. 3 in., 1 used for units B and D
1шт.
9
459825R91
BAIL ASSEMBLY, center, for 5 ft. 3 in., 1 used for units A, B, and E
1шт.
10
459842R1
CLEVIS, bail, 2 used for units B, C, D, and E
1шт.
PIN, 3/16 x 1-1/4 cotter, 2 used for units B, C, D, and E
1шт.
Y2208
PIN, 1/2 x 2-5/16 dld std-hd, 2 used for units B, C, D and E
1шт.
11
459845R1
CLEVIS, hitch (used per harrow)
1шт.
517843R1
COTTER PIN
PIN, 3/16 x 2-7/8 quick-attachable cotter (used per clevis)
1шт.
724775R1
HEADED PIN,3/4" x 3 1/4"
PIN, 3/4 x 3-1/4 dld std-hd (used per clevis)
1шт.
12
459806R11
TUBE ASSY, extension, 5 ft. 3 in., 1 used for unit B, 2 for unit C, 3 for unit D and 4 for unit E
1шт.
BOLT W/NUT, 7/16 x 1-3/4 hex-hd mach, 2 used for units D and E
1шт.
BOLT W/NUT, 7/16 x 2 hex-hd mach, 2 used for units B and D, 4 used for units C and E
1шт.
WASHER, 7/16 lock, 2 used for unit B, 4 used for units C and D, 6 used for unit E
1шт.
NUT, 7/16, 2 used for unit B, 4 for units C and D, 6 for unit E
1шт.
13
459807R11
TUBE ASSY, center, for 5 ft. 3 in., 1 used for units A, B, C, D and E
1шт.
14
459847R1
PLATE, drawbar hinge, for 5 ft. 3 in., 1 used for units B and D, 2 used for units C and E
1шт.
BOLT W/NUT, 7/16 x 3 hex-hd mach, 2 used for units b and D, 4 for units C and E
1шт.
PIN, 3/16 x 1-1/4 cotter, 1 used for units B and D, 2 for units C and E
1шт.
517843R1
COTTER PIN
PIN, 3/16 x 2-7/8 quick-attachable cotter, 1 used for units B and D, 2 for units C and E
1шт.
Q1230
PIN, 7/16 x 2-3/4 dld std-hd, 1 used for units B and D, 2 for units C and E
1шт.
496496R1
HEADED PIN,5/8" x 2 3/4"
PIN, 5/8 x 2-3/4 dld std-hd, 1 used for units B and D, 2 for units C and E
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, , 2 used for units B and D; 4 for units C and E 7/16"
1шт.
15
459846R1
HINGE, drawbar, 1 used for units B and D, 2 for units C and E
1шт.
16
NOT SERVICED SEPARATELY, order 459844R91
1шт.
17
NOT SERVICED SEPARATELY, order 459844R91
1шт.
Выбрано товаров: 42
