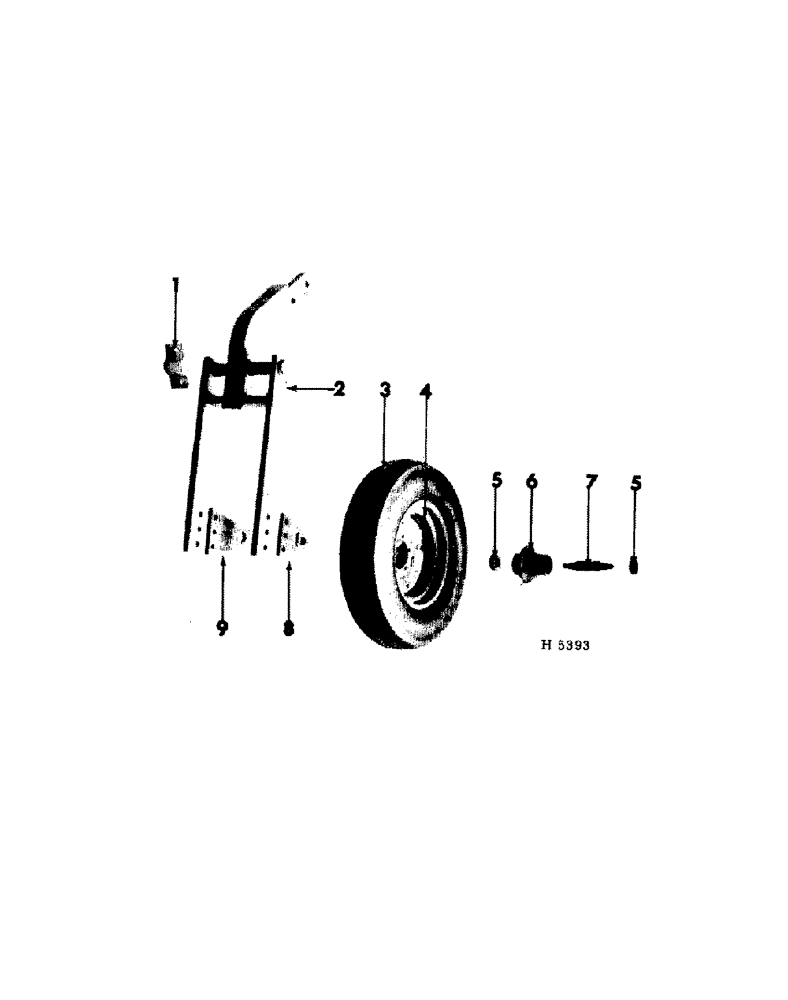

Запчасти Case IH 75 (06-03) - MAIN WHEEL ASSEMBLY

1

605695R1

CAP, main axle

4шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

8шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

8шт.

5/8" LOCK WASHER

8шт.

2

605845R91

FRAME ASSEMBLY, main wheel axle

2шт.

5/8 X 2-1/2" MACH. BOLT W/NUT

12шт.

5/8" LOCK WASHER

12шт.

3

TIRE, 7.50 x 16" implement type pneumatic

2шт.

3

TUBE, 7.50 x 16" inner

2шт.

4

459431R91

WHEEL

DISK AND RIM ASSEMBLY, main wheel

2шт.

456267R1

BOLT,1/2" - 20 x 1 7/8"

1/2 - NF X 1-7/8" WHEEL BOLT

12шт.

U18588

NUT

1/2" - NF WHEEL NUT

12шт.

5

ST430

BEARING, main wheel axle (1963-)

4шт.

5

668080R91

BEARING

main wheel axle (1960-63)

4шт.

6

605641R2

HUB, main wheel

2шт.

18425R91

LUBE NIPPLE,1/8"-27 NPT x .83" lg

1/8" STRAIGHT LUBRICATION FITTING (Special) (Pressure relief)

2шт.

7

605676R1

AXLE, main wheel

2шт.

1" HEX. NUT

4шт.

1" LOCK WASHER

4шт.

8

605842R91

SUPPORT ASSEMBLY, main wheel axle

2шт.

9

605746R1

SUPPORT, main wheel axle

2шт.

606178R1

DEFLECTOR, tube valve (Special) (Not illustrated)

2шт.
