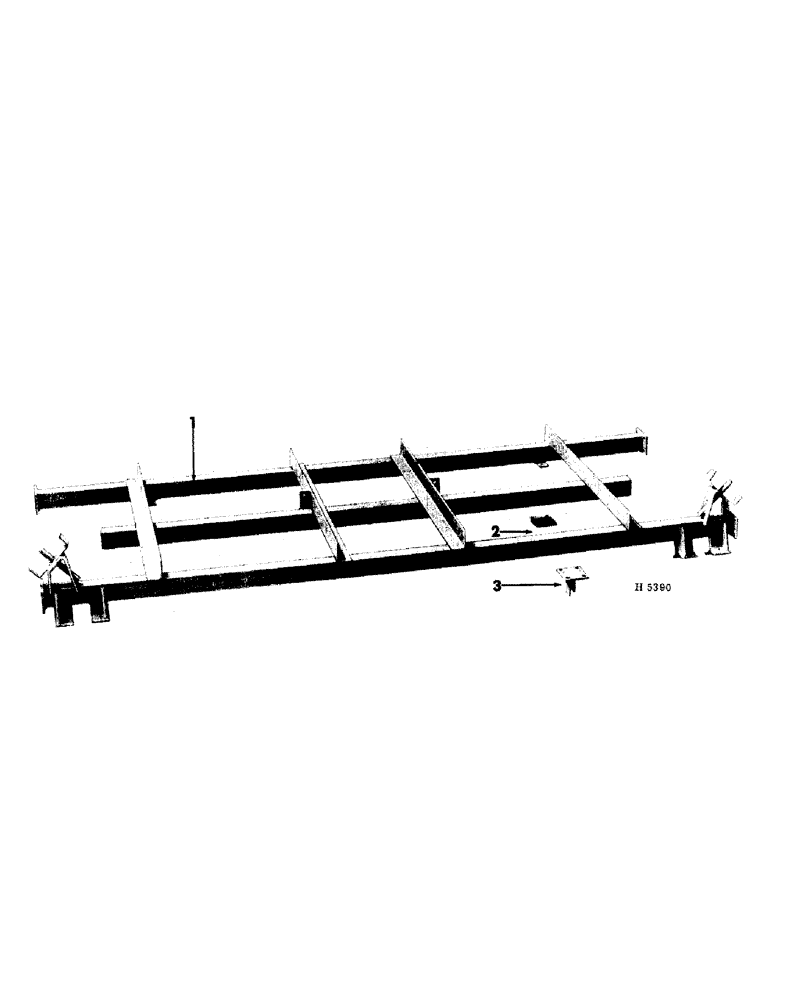

Запчасти Case IH 75 (06-02) - MAIN FRAME ASSEMBLY

1

605853R91

FRAME ASSEMBLY, center (20 ft.)

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

1

605852R91

FRAME ASSEMBLY, center (28 & 36 ft.)

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

2

605748R1

PLATE, support clamping (28 & 36 ft.)

2шт.

5/8 X 5-3/4" MACH. BOLT W/NUT

8шт.

5/8" LOCK WASHER

8шт.

3

605870R91

SUPPORT ASSEMBLY, hitch to frame truss rod (28 & 36 ft.)

2шт.
