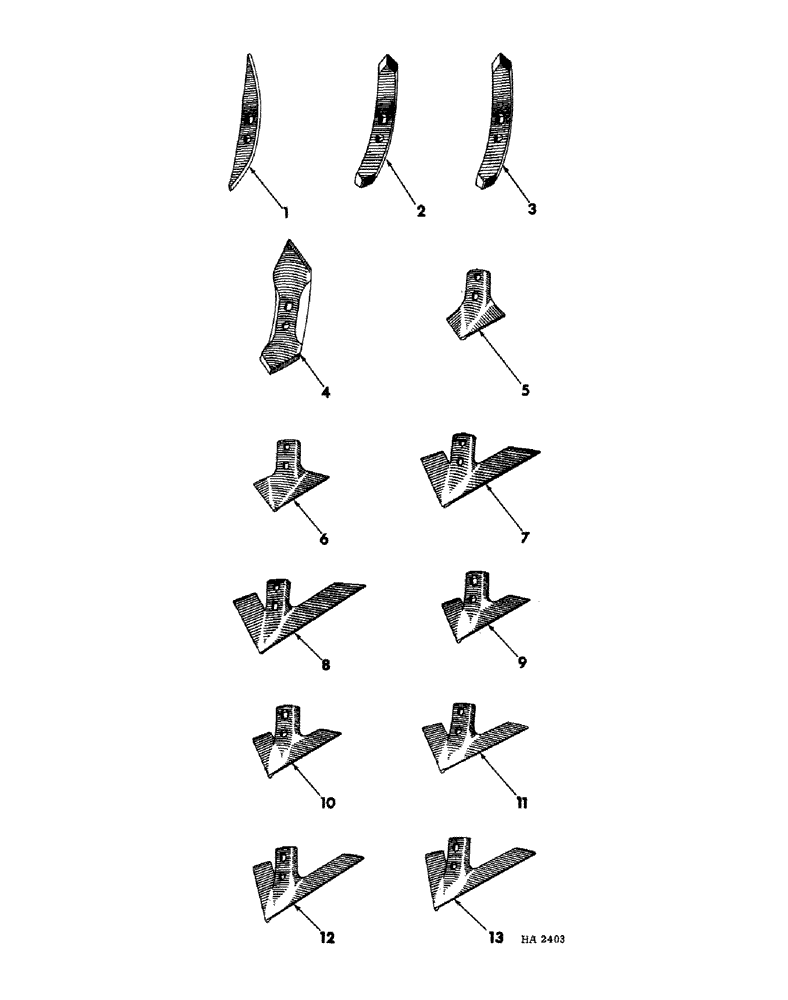

Запчасти Case IH 75 (06-16A) - GROUND WORKING TOOLS

1

602594R1

POINT

spike 2"

1шт.

602307R1

CARRIAGE BOLT,#3, 1/2" x 2 1/4"

1/2 X 2-1/4" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

2

601986R1

POINT

chisel 2"

1шт.

602307R1

CARRIAGE BOLT,#3, 1/2" x 2 1/4"

1/2 X 2-1/4" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

3

602862R1

POINT

chisel 2" (Hard surfaced)

1шт.

602307R1

CARRIAGE BOLT,#3, 1/2" x 2 1/4"

1/2 X 2-1/4" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

4

602595R1

TIP

SHOVEL, 4-1/2"

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

5

602276R2

SWEEP

SHOVEL, 8" (1/4" thick) (Special)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

6

602596R2

TIP

SHOVEL, 10" (1/4" thick) (Special)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

7

602592R2

SWEEP

16" (1/4" thick)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

8

602593R2

SWEEP

18" (1/4" thick) (Not on front rank)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

8

603891R1

SHOVEL

SWEEP, 18" (5/16" thick) (Not on front rank)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

9

603054R2

SWEEP

12" (1/4" thick) (Special)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

10

602257R2

SHOVEL

SWEEP, 12" (5/16" thick)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

11

603055R2

SWEEP

14" (1/4" thick)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

12

601988R2

NO LONGER SERVICED

SWEEP, 14" (5/16" thick)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

13

602207R2

SHOVEL

SWEEP, 16" (5/16" thick)

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

1/2 X 1-7/8" NO. 3 PLOW BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.
