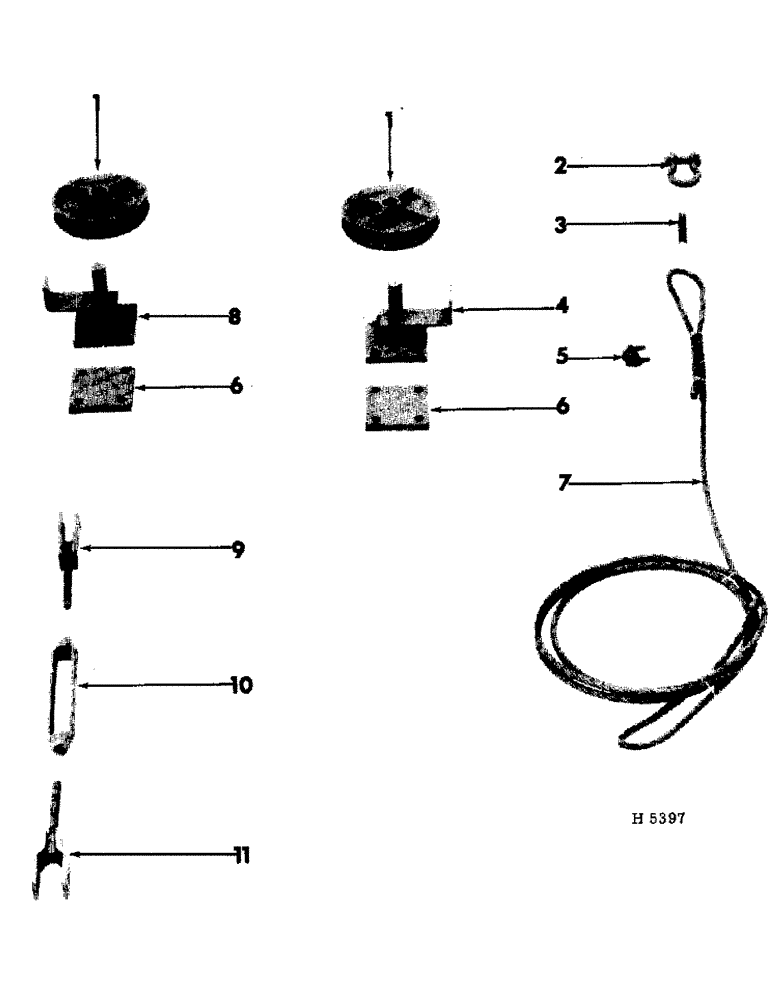

Запчасти Case IH 75 (06-14) - WING WHEEL LIFT CONNECTION

1

605657R1

PULLEY

lift cable

6шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

6шт.

1/4 X 1-3/4" COTTER PIN

6шт.

1-13/32 X 2 X 16 GAUGE WASHER

12шт.

2

605824R91

SHACKLE

ASSEMBLY (Cotter pin type) Lift cable anchor

2шт.

3

605826R1

EYE

THIMBLE, lift cable

4шт.

4

605846R91

SUPPORT ASSEMBLY, cable pulley inner left

1шт.

4

605847R91

SUPPORT ASSEMBLY, cable pulley inner right

1шт.

5

605827R91

CLIP

ASSEMBLY, lift cable

12шт.

6

605748R1

PLATE, pulley mounting lower

4шт.

5/8 X 5-3/4" MACH. BOLT W/NUT

16шт.

5/8" LOCK WASHER

16шт.

7

605830R1

CABLE, lift (20 ft.)

2шт.

7

605829R1

CABLE, lift (28 ft.)

2шт.

7

605828R1

CABLE, lift (36 ft.)

2шт.

8

605848R91

SUPPORT ASSEMBLY, cable pulley outer left

1шт.

8

605849R91

SUPPORT ASSEMBLY, cable pulley outer right

1шт.

9

605833R91

CLEVIS

ASSEMBLY, outer axle rear

2шт.

5/8 X 2" STD-HD. DLD. PIN

1шт.

3/16 X 1-1/4" COTTER PIN

2шт.

10

M73714

BUCKLE

TURNBUCKLE, lift cable

2шт.

11

605832R91

CLEVIS ASSEMBLY, outer axle front

2шт.

5/8 X 2-3/4" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

5/8" HEX. NUT

1шт.
