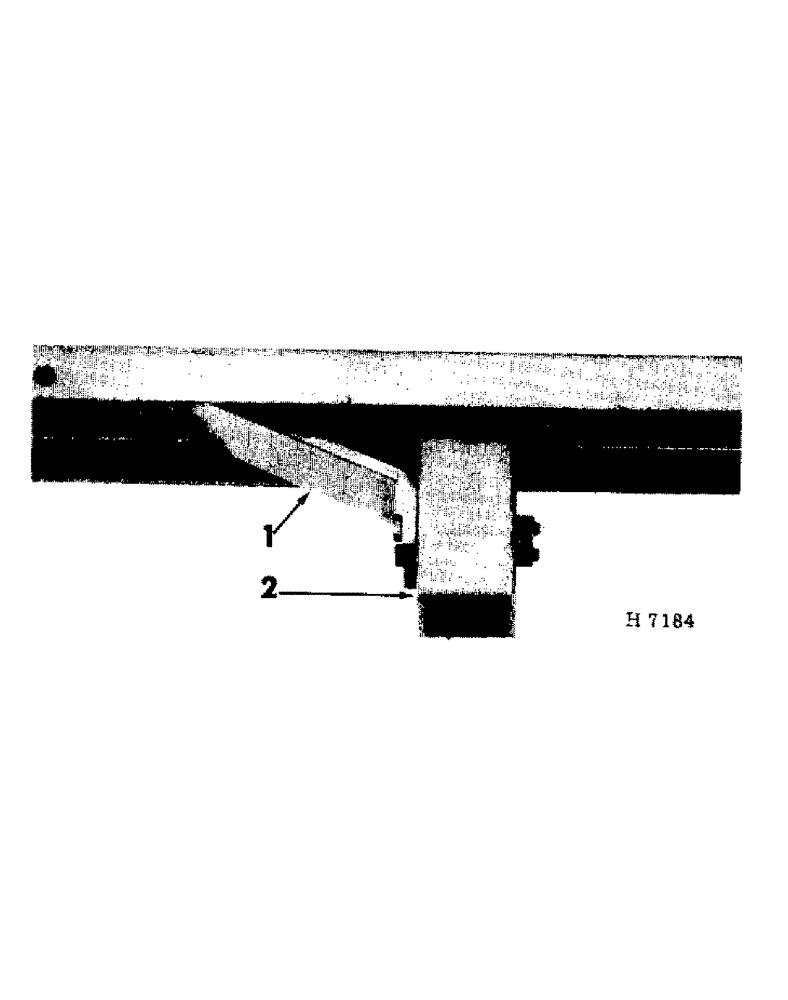

Запчасти Case IH 75 (06-13[A]) - FORWARD TOOTH MOUNTING

1

606461R1

BRACE, extension

2шт.

1/2 X 1-1/2" CAD-PLTD. CARRIAGE BOLT W/NUT

4шт.

1/2" LOCK WASHER

2шт.

2

606459R91

EXTENSION ASSEMBLY

2шт.

5/8 X 2" CAD-PLTD. HEX-HD. MACH. BOLT W/NUT

4шт.

5/8 X 2" CAD-PLTD. CARRIAGE BOLT W/NUT

4шт.

1/2 X 4-1/4" CAD-PLTD. HEX-HD. MACH. BOLT W/NUT

4шт.

5/8" CAD-PLTD. LOCK WASHER

8шт.

1/2" CAD-PLTD. LOCK WASHER

4шт.
