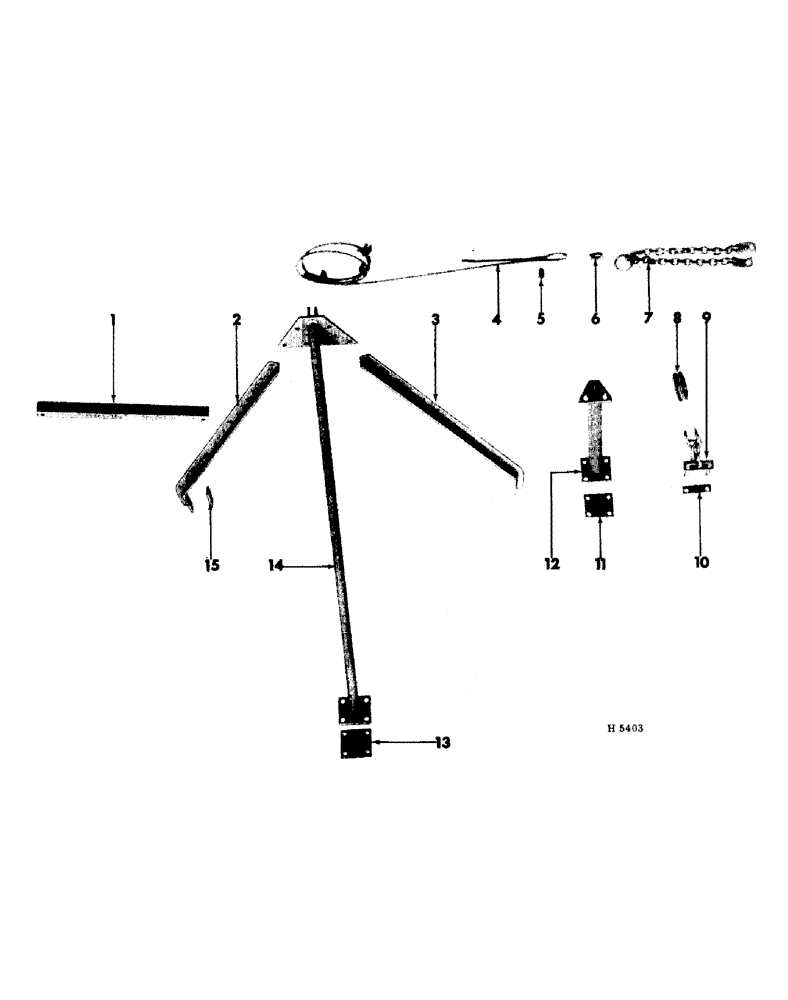

Запчасти Case IH 75 (06-12) - WING LIFT ATTACHMENT

1

605904R1

ANGLE, wing support tie (20 ft.)

2шт.

5/8 X 1-3/8" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

1

605903R1

ANGLE, wing support tie (28 & 36 ft.)

2шт.

5/8 X 1-3/8" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

2

605909R1

ANGLE, wing support rear left (20 ft.)

1шт.

5/8 X 1-1/2" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

2

605910R1

ANGLE, wing support rear right (20 ft.)

1шт.

5/8 X 1-1/2" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

3

605907R1

ANGLE, wing support front left (20 ft.)

1шт.

5/8 X 1-1/2" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

3

605908R1

ANGLE, wing support front right (20 ft.)

1шт.

5/8 X 1-1/2" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

3

605905R1

ANGLE, wing lift support (Left front & right rear) (28 & 36 ft.)

2шт.

5/8 X 1-5/8" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

3

605906R1

ANGLE, wing lift support (Left rear & right front) (28 & 36 ft.)

2шт.

5/8 X 1-5/8" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

4

605918R1

CABLE, wing raising (20 ft.)

2шт.

4

605917R1

CABLE, wing raising (28 ft.)

2шт.

4

605916R1

CABLE, wing raising (36 ft.)

2шт.

5

605932R91

CLAMP

CLIP ASSEMBLY, wing raising cable

12шт.

6

605931R1

EYE

THIMBLE, wing raising cable

4шт.

7

607921R91

CHAIN ASSEMBLY, lift cable end

2шт.

5/8 X 2" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

8

605885R1

PULLEY

wing lift

2шт.

P14608

AXLE PIN

3/4 X 2-3/4" STD-HD. DLD. PIN

2шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

4шт.

9

605920R91

ANCHOR ASSEMBLY, wing lift pulley

2шт.

3/4" HEX. NUT

4шт.

3/4" LOCK WASHER

4шт.

10

605877R1

PLATE, cable swivel clamping

4шт.

11

605748R1

PLATE, transport stand clamping

2шт.

5/8 X 5-3/4" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

12

605924R91

STAND ASSEMBLY, wing lift transport left (20 ft.)

1шт.

12

605925R91

STAND ASSEMBLY, wing lift transport right (20 ft.)

1шт.

12

605923R91

STAND ASSEMBLY, wing lift transport (28 ft.)

2шт.

12

605922R91

STAND ASSEMBLY, wing lift transport (36 ft.)

2шт.

13

605748R1

PLATE, clamping (20 ft.)

2шт.

5/8 X 5-3/4" MACH. BOLT W/NUT

8шт.

5/8" LOCK WASHER

8шт.

13

601903R2

PLATE, clamping (28 & 36 ft.)

2шт.

3/4 X 5-3/4" MACH. BOLT W/NUT

8шт.

3/4" LOCK WASHER

8шт.

14

605927R91

SUPPORT ASSEMBLY, wing lift outer left (20 ft.)

1шт.

5/8 X 2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

5/8 X 1-3/4" STD-HD. DLD. PIN

2шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

21/32 X 1-1/4 X 11 GAUGE WASHER

2шт.

5/8" CAD-PLTD. LOCK WASHER

2шт.

14

605928R91

SUPPORT ASSEMBLY, wing lift outer right (20 ft.)

1шт.

5/8 X 2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

5/8 X 1-3/4" STD-HD. DLD. PIN

2шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

21/32 X 1-1/4 X 11 GAUGE WASHER

2шт.

5/8" CAD-PLTD. LOCK WASHER

2шт.

14

605926R1

SUPPORT ASSEMBLY, wing lift outer (28 & 36 ft.)

2шт.

5/8 X 2" CAD-PLTD. MACH. BOLT W/NUT

4шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

5/8 X 1-3/4" STD-HD. DLD. PIN

4шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

2шт.

21/32 X 1-1/4 X 11 GAUGE WASHER

4шт.

5/8" CAD-PLTD. LOCK WASHER

4шт.

15

605896R1

BAR, clamping

4шт.

5/8 X 4-3/4" MACH. BOLT W/NUT

8шт.

5/8" LOCK WASHER

8шт.
