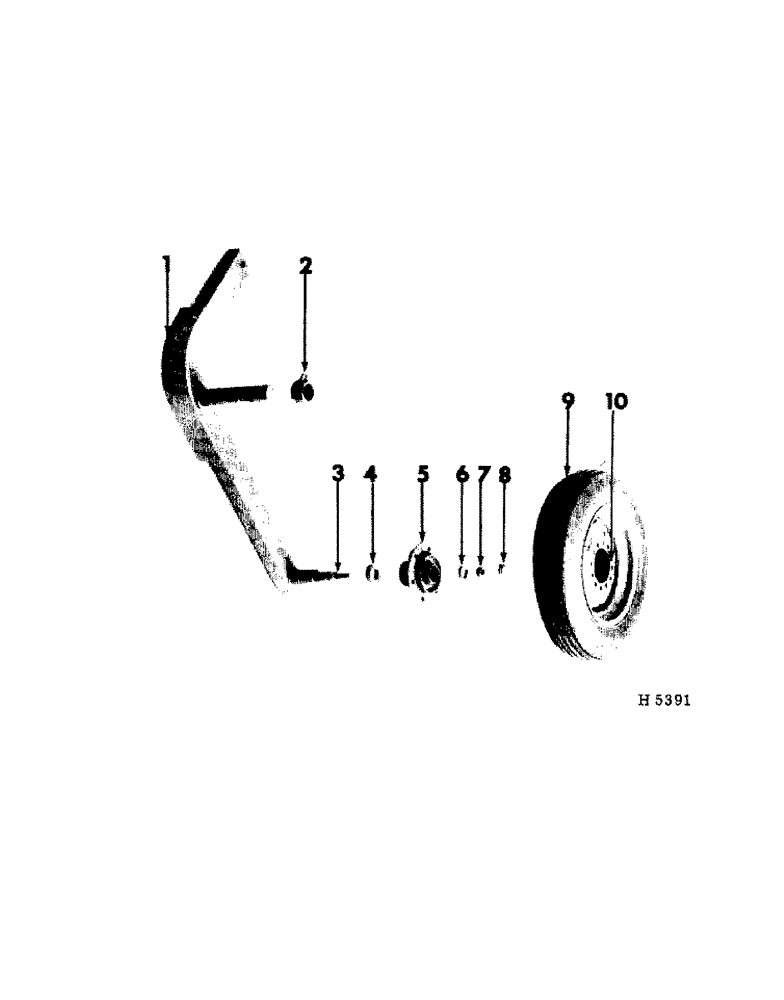

Запчасти Case IH 75 (06-11) - WING WHEEL ASSEMBLY (1960-62)

1

605843R92

AXLE ASSEMBLY, left (Includes 602954R3 - spindle)

1шт.

.

13/16 X 1-1/2 X .134 WASHER

1шт.

.

1-25/32 X 2-5/8 X 16 GA. WASHER

2шт.

.

5/32 X 1-1/2" COTTER PIN

1шт.

.

5/16 X 2-1/2" COTTER PIN

2шт.

.

427639

SLOTTED NUT,3/4"-16, G5

3/4" HEX. SLTD. NUT

1шт.

1

605844R92

AXLE ASSEMBLY, right (Includes 602954R3 - spindle)

1шт.

.

13/16 X 1-1/2 X .134 WASHER

1шт.

.

1-25/32 X 2-5/8 X 16 GA. WASHER

2шт.

.

5/32 X 1-1/2" COTTER PIN

1шт.

.

5/16 X 2-1/2" COTTER PIN

2шт.

.

427639

SLOTTED NUT,3/4"-16, G5

3/4" NF HEX. SLTD. NUT

1шт.

2

602327R1

BALL BEARING,1.76" ID x 2.5" OD x 1.5"

wing weel axle

4шт.

.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

.

1/4 X 1-1/4" MACH. BOLT W/NUT

4шт.

.

1/4" LOCK WASHER

4шт.

3

602954R3

SPINDLE, axle

2шт.

4

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSEMBLY, axle spindle

2шт.

5

602952R1

HUB

wing wheel

2шт.

6

651814R1

BEARING CUP

CUP, axle spindle

2шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE ASSEMBLY, axle spindle

2шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

8

602959R1

PLUG

CAP, hub

2шт.

9

TIRE, 5.90 x 15" 4 ply rib type pneumatic

2шт.

9

TUBE, 5.90 x 15" inner

2шт.

10

662192R91

DISC

DISK AND RIM ASSEMBLY, wing wheel

2шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2" NF X 7/8" WHEEL BOLT

12шт.
