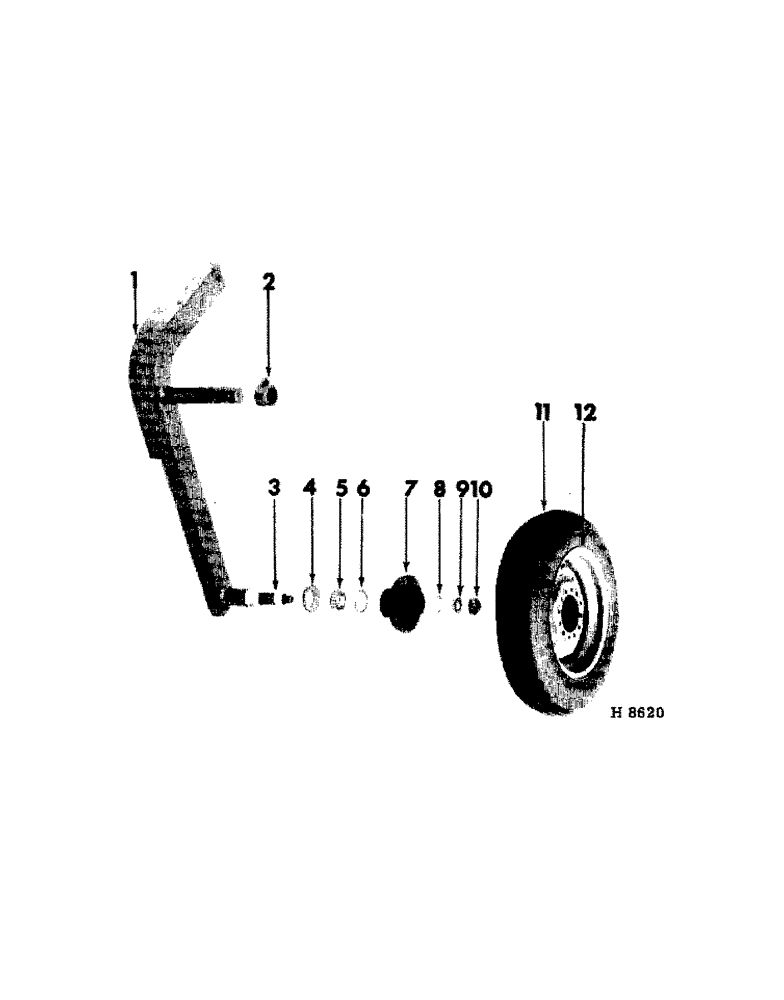

Запчасти Case IH 75 (06-11[A]) - WING WHEEL ASSEMBLY (1962-)

1

606465R91

AXLE ASSEMBLY, left (Includes 606464R1 - spindle)

1шт.

29/32 X 2 X 7 GA. WASHER

1шт.

1-25/32 X 2-5/8 X 16 GA. WASHER

2шт.

1/8 X 1/4" COTTER PIN

1шт.

5/16 X 2-1/2" COTTER PIN

2шт.

70120D

SLOTTED NUT,7/8"-14

7/8" NF HEX. SLTD. NUT

1шт.

1

606466R91

AXLE ASSEMBLY, right (Includes 606464R1 - spindle)

1шт.

29/32 X 2 X 7 GA. WASHER

1шт.

1-25/32 X 2-5/8 X 16 GA. WASHER

2шт.

1/8 X 1/4" COTTER PIN

1шт.

5/16 X 2-1/2" COTTER PIN

2шт.

70120D

SLOTTED NUT,7/8"-14

7/8" NF HEX. SLTD. NUT

1шт.

2

602327R1

BALL BEARING,1.76" ID x 2.5" OD x 1.5"

wing wheel axle

4шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

1/4 X 1-1/4" MACH. BOLT W/NUT

4шт.

1/4" LOCK WASHER

4шт.

3

606464R1

SPINDLE, axle

2шт.

4

606556R91

OIL SEAL

SEAL W/SLEEVE

2шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE ASSEMBLY, inner bearing

2шт.

6

663558R1

BEARING CUP

CUP, inner bearing

2шт.

7

606468R1

HUB

wing wheel

2шт.

651817R1

BEARING CUP

CUP, outer bearing

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE ASSEMBLY, outer bearing

2шт.

10

663906R1

CAP

hub

2шт.

11

TIRE, 5.90 x 15" 4 ply rib type pneumatic

2шт.

11

TUBE, 5.90 x 15" inner

2шт.

12

662192R91

DISC

DISK AND RIM ASSEMBLY, wing wheel

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2" NF X 7/8" WHEEL BOLT

12шт.
