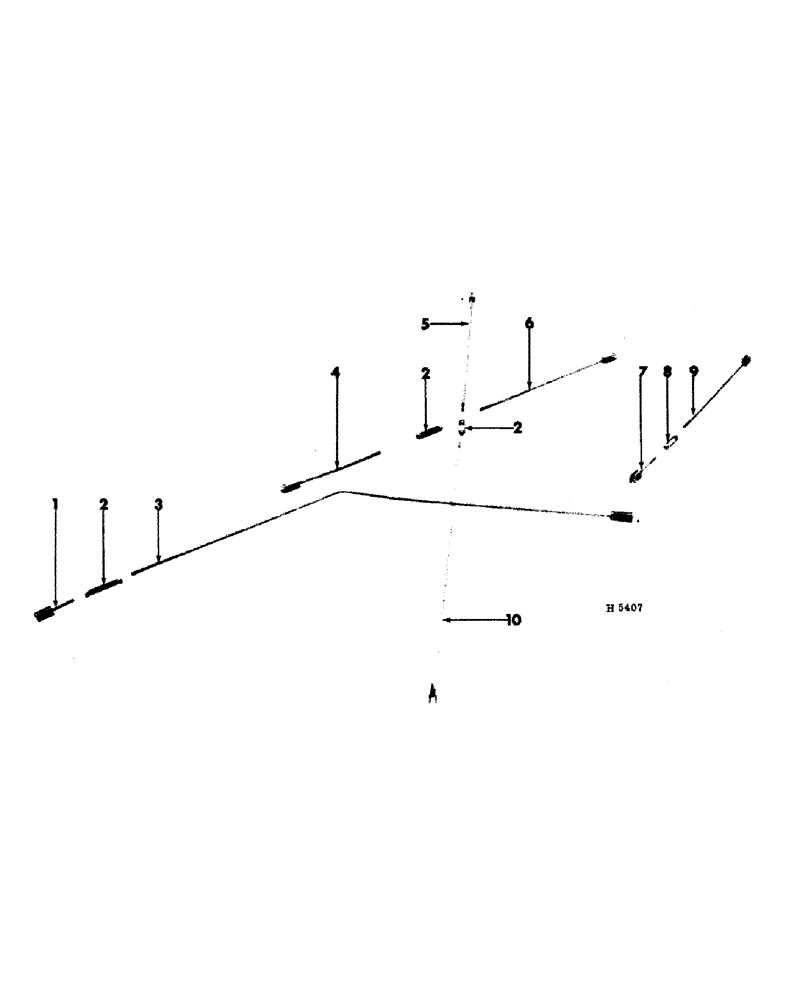

Запчасти Case IH 75 (06-10) - HITCH TRUSS AND TIE RODS (28 FT. AND 36 FT. MACHINES)

1

605825R91

JAW W/L.H. THREAD ASSEMBLY, (Cotter pin type) Tie beam truss rod

1шт.

2

14592D

TURNBUCKLE, truss rod

5шт.

3

605685R11

ROD ASSEMBLY, (R.H. thread), Tie beam truss

1шт.

5/8 X 1-7/8" STD-HD. DLD. PIN

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.

3/4" HEX. NUT

1шт.

4

605679R11

ROD ASSEMBLY, (R.H. thread), front tie (28 ft.)

2шт.

5/8 X 1-7/8" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

3/4" HEX. NUT

2шт.

4

605677R11

ROD ASSEMBLY, (R.H. thread), Front tie (36 ft.)

2шт.

5/8 X 1-7/8" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

3/4" HEX. NUT

2шт.

5

605687R11

ROD ASSEMBLY, (R.H. thread), hitch to frame truss rear (28 ft.)

2шт.

1/8 X 1-1/4" COTTER PIN

1шт.

606135R1

5/8 X 2-1/4" HEX-HD. DLD. BOLT

2шт.

5/8" HEX. SLTD. NUT

2шт.

23/32 X 1-1/2 X 16 GA. WASHER

2шт.

3/4" HEX. NUT

2шт.

5

605686R11

ROD ASSEMBLY, (R.H. thread), hitch to frame truss rear (36 ft.)

2шт.

1/8 X 1-1/4" COTTER PIN

1шт.

606135R1

5/8 X 2-1/4" HEX-HD. DLD. BOLT

2шт.

5/8" HEX. SLTD. NUT

2шт.

23/32 X 1-1/2 X 16 GA. WASHER

2шт.

3/4" HEX. NUT

2шт.

6

605678R11

ROD ASSEMBLY, (L.H. thread), rear tie

2шт.

5/8 X 1-7/8" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

7

605683R11

ROD ASSEMBLY, (R.H. thread), hitch truss front outer (28 ft.)

2шт.

5/8 X 1-3/4" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

5/8" HEX. NUT

2шт.

7

605681R11

ROD ASSEMBLY, (R.H. thread), hitch truss front outer (36 ft.)

2шт.

5/8 X 1-3/4" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

5/8" HEX. NUT

2шт.

8

2193

TURNBUCKLE

hitch truss rod

2шт.

9

605684R11

ROD ASSEMBLY, (L.H. thread), hitch truss rear outer (28 ft.)

2шт.

5/8 X 1-3/4" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

9

605682R11

ROD ASSEMBLY, (L.H. thread), hitch truss rear outer (36 ft.)

2шт.

5/8 X 1-3/4" STD-HD. DLD. PIN

2шт.

3/16 X 1-1/4" COTTER PIN

2шт.

10

605688R11

ROD ASSEMBLY, (L.H. thread), hitch to frame truss front

2шт.

1/8 X 1-1/4" COTTER PIN

1шт.

606135R1

5/8 X 2-1/4" HEX-HD. DLD. BOLT

2шт.

5/8" HEX. SLTD. NUT

2шт.

23/32 X 1-1/2 X 16 GA. WASHER

2шт.

3/4" HEX. NUT

2шт.
