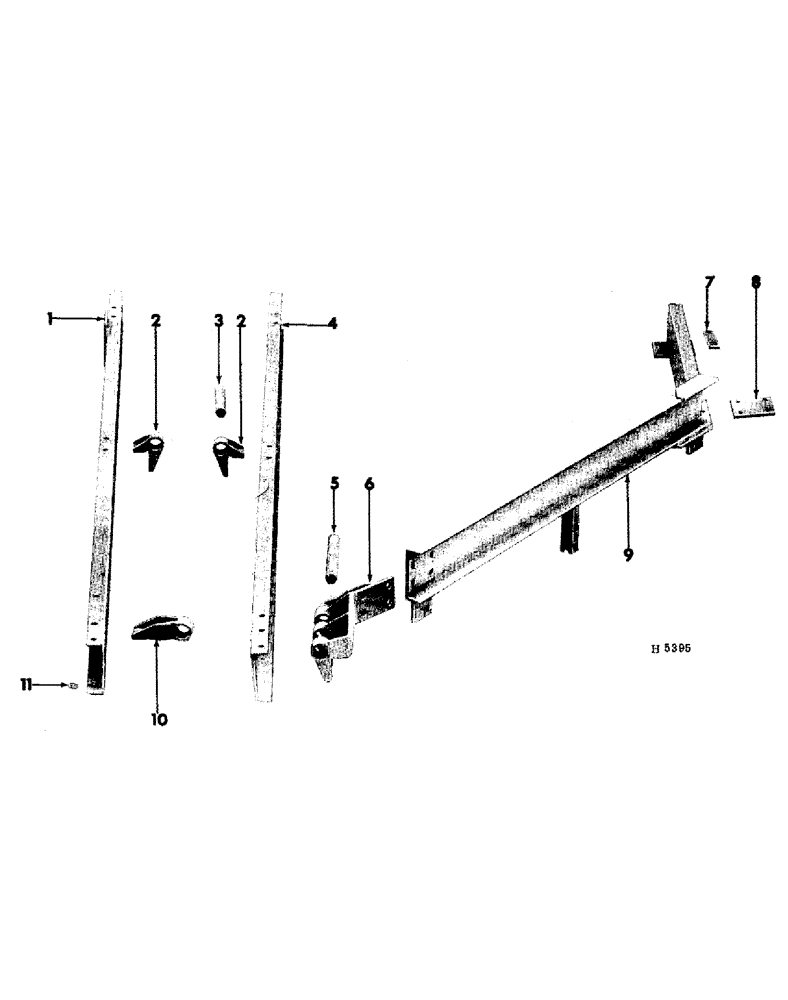

Запчасти Case IH 75 (06-08) - HITCH CHANNELS AND HINGE BRACKETS

1

605816R2

CHANNEL ASSEMBLY, hitch inner left (20 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

8шт.

5/8 X 2" CARRIAGE BOLT W/NUT

8шт.

5/8" LOCK WASHER

16шт.

1

605812R12

CHANNEL ASSEMBLY, hitch inner left (28 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

8шт.

5/8 X 2" CARRIAGE BOLT W/NUT

8шт.

5/8" LOCK WASHER

16шт.

1

605808R12

CHANNEL ASSEMBLY, hitch inner left (36 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

8шт.

5/8 X 2" CARRIAGE BOLT W/NUT

8шт.

5/8" LOCK WASHER

16шт.

1

605817R12

CHANNEL ASSEMBLY, hitch inner right (20 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

8шт.

5/8 X 2" CARRIAGE BOLT W/NUT

8шт.

5/8" LOCK WASHER

16шт.

1

605813R12

CHANNEL ASSEMBLY, hitch inner right (28 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

8шт.

5/8 X 2" CARRIAGE BOLT W/NUT

8шт.

5/8" LOCK WASHER

16шт.

1

605809R12

CHANNEL ASSEMBLY, hitch inner right (36 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

8шт.

5/8 X 2" CARRIAGE BOLT W/NUT

8шт.

5/8" LOCK WASHER

16шт.

2

605662R1

BRACKET, wing hinge

16шт.

5/8 X 1-5/8" MACH. BOLT W/NUT

16шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

16шт.

5/8" LOCK WASHER

32шт.

3

605672R1

PIN, wing hinge bracket

4шт.

1-17/32 X 2-1/4 X 16 GAUGE WASHER

20шт.

1/4 X 2-1/4" COTTER PIN

8шт.

4

605818R21

CHANNEL ASSEMBLY, hitch outer left (20 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

12шт.

5/8 X 2" CARRIAGE BOLT W/NUT

12шт.

5/8" LOCK WASHER

24шт.

4

605814R21

CHANNEL ASSEMBLY, hitch outer left (28 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

12шт.

5/8 X 2" CARRIAGE BOLT W/NUT

12шт.

5/8" LOCK WASHER

24шт.

4

605810R21

CHANNEL ASSEMBLY, hitch outer left (36 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

12шт.

5/8 X 2" CARRIAGE BOLT W/NUT

12шт.

5/8" LOCK WASHER

24шт.

4

605819R21

CHANNEL ASSEMBLY, hitch outer right (20 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

12шт.

5/8 X 2" CARRIAGE BOLT W/NUT

12шт.

5/8" LOCK WASHER

24шт.

4

605815R21

CHANNEL ASSEMBLY, hitch outer right (28 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

12шт.

5/8 X 2" CARRIAGE BOLT W/NUT

12шт.

5/8" LOCK WASHER

24шт.

4

605811R21

CHANNEL ASSEMBLY, hitch outer right (36 ft.)

1шт.

5/8 X 2" MACH. BOLT W/NUT

12шт.

5/8 X 2" CARRIAGE BOLT W/NUT

12шт.

5/8" LOCK WASHER

24шт.

5

605671R1

PIN, hinge bracket

2шт.

1-17/32 X 2-1/4 X 16 GAUGE WASHER

12шт.

1/4 X 2-1/4" COTTER PIN

4шт.

6

605659R1

BRACKET, hinge outer left

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

14шт.

5/8" LOCK WASHER

14шт.

6

605660R1

BRACKET, hinge outer right

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

14шт.

5/8" LOCK WASHER

14шт.

7

605718R1

BAR, clamping (36 ft.)

2шт.

5/8 X 5-1/2" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

8

605745R1

PLATE, hitch anchor clamping outer lower (20 and 28 ft.)

4шт.

5/8 X 5-1/2" MACH. BOLT W/NUT

16шт.

5/8" LOCK WASHER

16шт.

8

605742R1

PLATE, hitch clamping outer (36 ft.)

2шт.

5/8 X 5-1/2" MACH. BOLT W/NUT

8шт.

5/8" LOCK WASHER

8шт.

9

605864R91

HITCH ASSEMBLY, wing left (20 ft.)

1шт.

9

605865R91

HITCH ASSEMBLY, wing right (20 ft.)

1шт.

9

605862R91

HITCH ASSEMBLY, wing left (28 ft.)

1шт.

9

605860R91

HITCH ASSEMBLY, wing left (36 ft.)

1шт.

5/8 X 1-5/8" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

9

605861R91

HITCH ASSEMBLY, wing right (36 ft.)

1шт.

5/8 X 1-5/8" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

10

605661R1

BRACKET, hinge inner

4шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

4шт.

5/8 X 2-1/4" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

8шт.

11

605658R1

WASHER

SPACER, channel (Tapered washer)

34шт.
