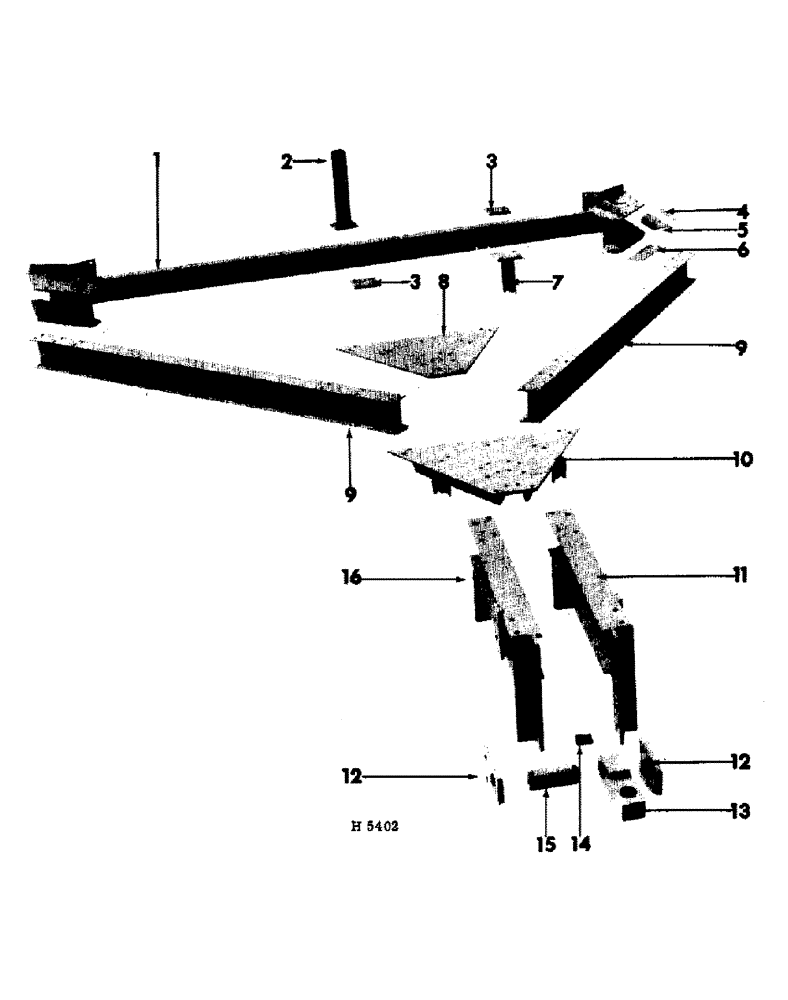

Запчасти Case IH 75 (06-07) - HITCH ASSEMBLY (28 FT. AND 36 FT. MACHINES)

1

605850R91

BEAM ASSEMBLY, hitch tie

1шт.

5/8 X 1-3/4 HEX-HD. BOLT W/NUT

12шт.

5/8 X 2" HEX-HD. BOLT W/NUT

12шт.

5/8 X 2" MACH. BOLT W/NUT

2шт.

5/8 X 2-1/4" MACH. BOLT W/NUT

6шт.

5/8" LOCK WASHER

32шт.

2

605868R91

SUPPORT ASSEMBLY, truss rod center

1шт.

3

605751R1

PLATE, truss rod support

3шт.

5/8 X 7" MACH. BOLT W/NUT

12шт.

5/8" LOCK WASHER

12шт.

4

605764R1

FILLER, inner hitch tie beam

2шт.

5

605737R1

FILLER, tie beam (1960)

2шт.

5/8 X 1-1/2" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

6

605765R1

PLATE, tie beam filler

1шт.

7

605869R91

SUPPORT ASSEMBLY, truss rod

2шт.

8

605719R1

PLATE, hitch upper

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

20шт.

5/8" LOCK WASHER

20шт.

9

605801R1

BEAM, hitch

2шт.

10

605840R91

PLATE ASSEMBLY, hitch lower

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

20шт.

5/8" LOCK WASHER

20шт.

11

605836R91

BEAM ASSEMBLY, front hitch left

1шт.

12

605754R1

PLATE, tongue clevis support

2шт.

1 X 6-1/4" HEX-HD. BOLT W/NUT

2шт.

1" LOCK WASHER

2шт.

13

605867R91

TONGUE ASSEMBLY, hitch

1шт.

14

605822R1

SPACER

clevis plate

2шт.

15

605691R1

PIN, hitch

1шт.

3/8 X 3-1/2" COTTER PIN

2шт.

2-17/32 X 3-1/4 X 16 GA. WASHER

2шт.

16

605837R91

BEAM ASSEMBLY, front hitch right

1шт.
