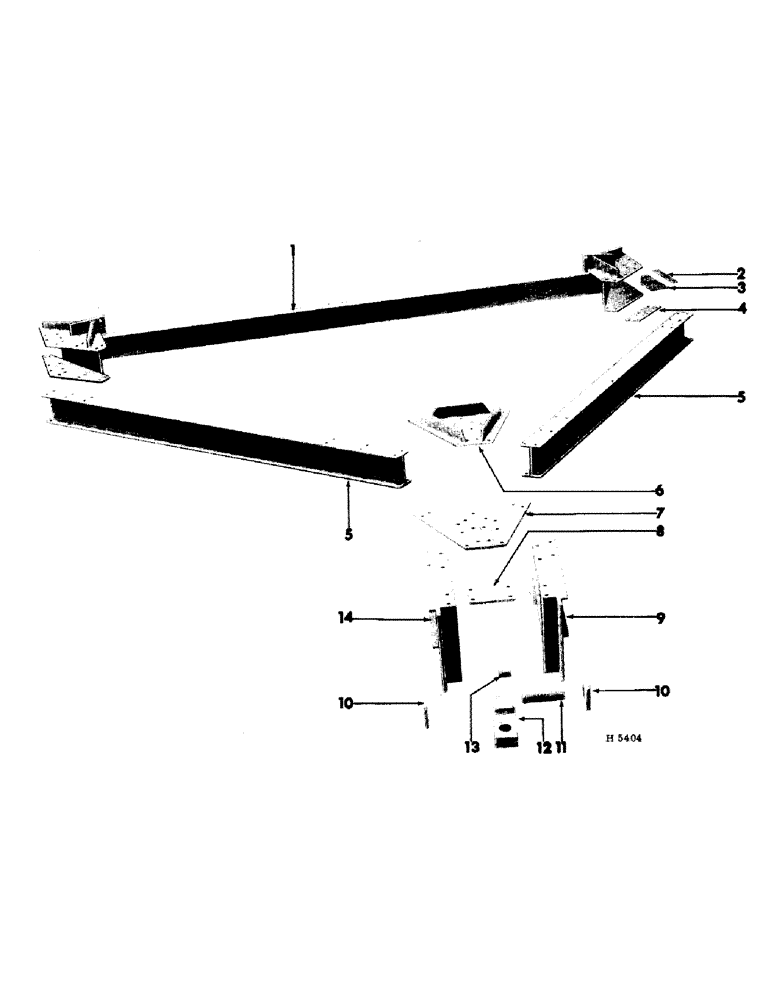

Запчасти Case IH 75 (06-06) - HITCH ASSEMBLY (20 FT. MACHINES ONLY)

1

605851R91

BEAM ASSEMBLY, hitch tie

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

12шт.

5/8 X 2" HEX-HD. BOLT W/NUT

12шт.

5/8 X 2" MACH. BOLT W/NUT

2шт.

5/8 X 2-1/4" MACH. BOLT W/NUT

6шт.

5/8" LOCK WASHER

32шт.

2

605764R1

FILLER, inner hitch tie beam

2шт.

3

605737R1

FILLER, tie beam (1960)

2шт.

5/8 X 1-1/2" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

4

605765R1

PLATE, tie beam filler

1шт.

5

605803R1

BEAM, hitch

2шт.

6

605841R91

PLATE ASSEMBLY, hitch upper

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

16шт.

5/8" LOCK WASHER

16шт.

7

605720R1

PLATE, hitch lower

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

16шт.

5/8" LOCK WASHER

16шт.

8

605694R1

PLATE, hitch tie

1шт.

5/8 X 1-3/4" HEX-HD. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.

9

605838R91

BEAM ASSEMBLY, front hitch left

1шт.

10

605753R1

PLATE, tongue clevis support

2шт.

1 X 6-1/4" HEX-HD. BOLT W/NUT

2шт.

1" LOCK WASHER

2шт.

11

605690R1

PIN, hitch

1шт.

3/8 X 2-1/2" COTTER PIN

2шт.

1-25/32 X 2-1/4 X 7 GA. WASHER

2шт.

12

605866R91

TOW BAR

TONGUE ASSEMBLY, hitch

1шт.

13

605822R1

SPACER

clevis plate

2шт.

14

605839R91

BEAM ASSEMBLY, front hitch right

1шт.
