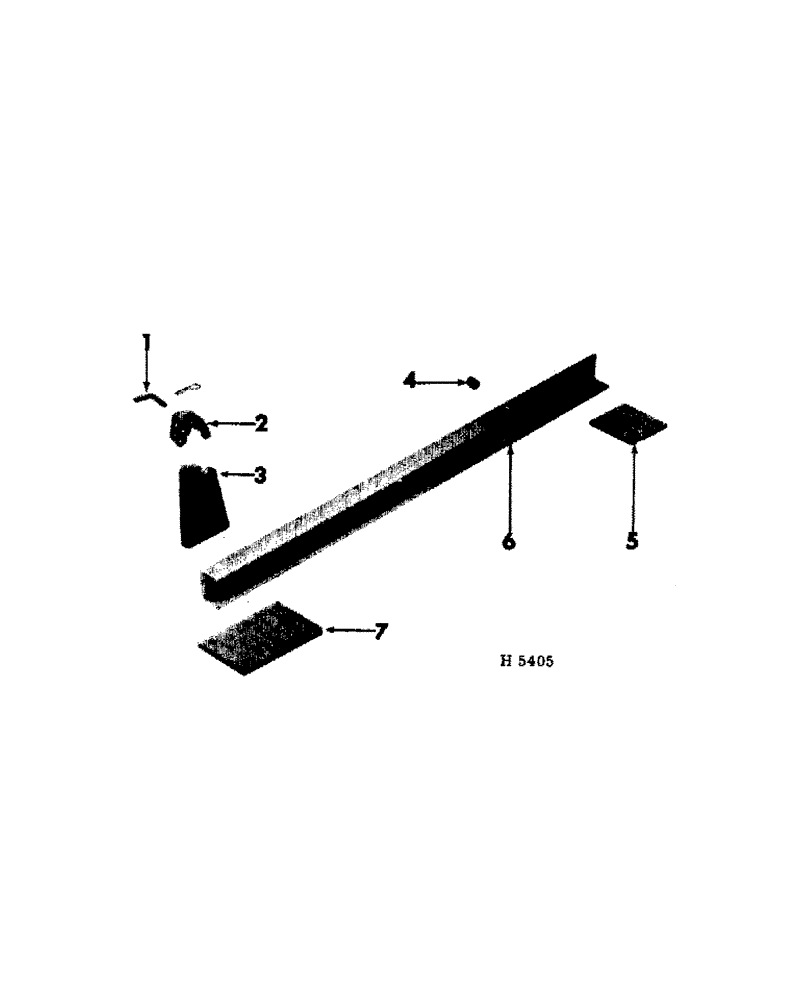

Запчасти Case IH 75 (06-04) - HYDRAULIC CYLINDER MOUNTING PARTS

1

602801R1

PIN

locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

2

526263R1

RETAINER

cylinder

1шт.

1/2 X 2-1/4" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

3

605747R11

PLATE ASSEMBLY, cylinder mounting front

1шт.

3/4 X 3-1/2" MACH. BOLT W/NUT

2шт.

3/4" LOCK WASHER

2шт.

4

615944R1

SPACER,3/4" X-Strng Pipe x 1 1/4"

cylinder anchor angle

2шт.

5

605714R1

PLATE, cylinder support clamping (3-20 ft.) (2-28 & 36 ft.)

1шт.

5/8 X 5-1/2" MACH. BOLT W/NUT (12-20 ft.) (8-28 & 36 ft.)

1шт.

5/8" LOCK WASHER (12-20 ft.) (8-28 & 36 ft.)

1шт.

6

605784R11

ANGLE ASSEMBLY, cylinder right

1шт.

6

605783R11

ANGLE ASSEMBLY, cylinder left

1шт.

7

605697R1

PLATE, tie rod anchor (28 and 36 ft.)

1шт.

5/8 X 5-1/2" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.
