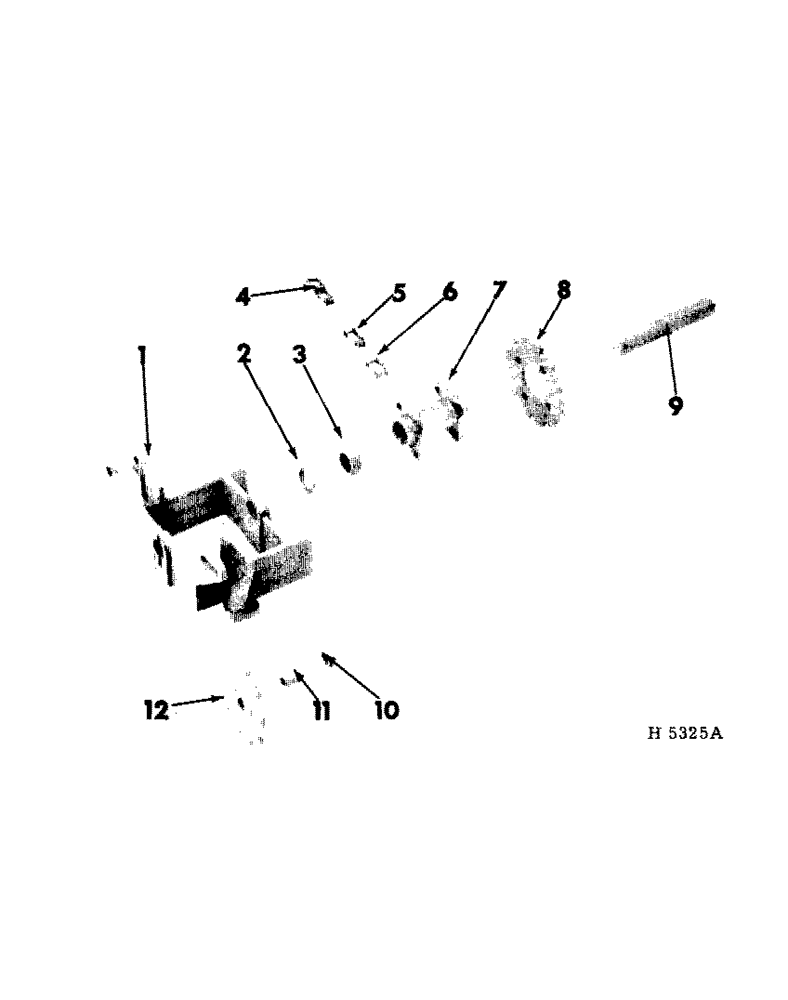

Запчасти Case IH 7 (05-05[A]) - JACKSHAFT WITH SEALED BEARINGS (SPECIAL)

1

605602R1

SUPPORT

jackshaft

1шт.

7/16 X 1-1/8" MACH. BOLT W/NUT

4шт.

7/16" LOCK WASHER

4шт.

2

605612R1

OIL SEAL, jackshaft

2шт.

3

454256R91

BEARING CUP,Needle, 28.56mm ID x 38.11mm OD x 19.05mm W

jackshaft

2шт.

4

CHAIN ASSEMBLY, main drive (Steel wheels) 1-1/4" extended pitch roller type (Consists of 92 links) (For an assembled chain order 1 - 569089R91 10 ft. length of chain reduce to 89 links and add 2 - 456929R91 off-set links and 1 - 456980R91 connecting link)

1шт.

CHAIN ASSEMBLY, main drive (Pneumatic wheel) 1-1/4" extended pitch roller type (Consists of 95 links) (For an assembled chain order 1 - 569089R91 10 ft. length of chain reduce to 91 links and add 3 - 456929R91 off-set links and 1 - 456980R91 connecting link)

1шт.

5

456929R91

CHAIN LINK

OFFSET LINK ASSEMBLY

1шт.

1360D

PIN, offset link

1шт.

1751D

PACKAGE

PIN, cotter (1/4 lb. pkg.)

1шт.

6

456980R1

CONNECTING LINK ASSEMBLY

1шт.

1751D

PACKAGE

PIN, cotter (1/4 lb. pkg.)

1шт.

7

HUB AND SPROCKET, (13T) (1960-61) (Furnish 1 - 606242R1 - hub and 1 - 605197R1 - sprocket)

1шт.

7

606242R1

HUB

13T (1961-)

1шт.

8

605197R1

SPROCKET ASSY.

SPROCKET, boot drive

2шт.

7/16 X 1-1/4" MACH. BOLT W/NUT

8шт.

7/16" LOCK WASHER

8шт.

9

605609R1

PIN

JACKSHAFT

1шт.

1/4 X 1-1/2" SPIROL PIN

2шт.

Q162

WASHER

1-5/32 X 1-3/4 X 16 GAUGE WASHER

2шт.

10

605610R1

SPACER

idler sprocket

4шт.

11

605611R1

BUSHING

SPACER, idler sprocket

2шт.

12

605613R91

SPROCKET ASSY.

SPROCKET AND BEARING, idler

2шт.

17/32 X 1-1/4 X 16 GAUGE WASHER

2шт.

1/2 X 2-7/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.
