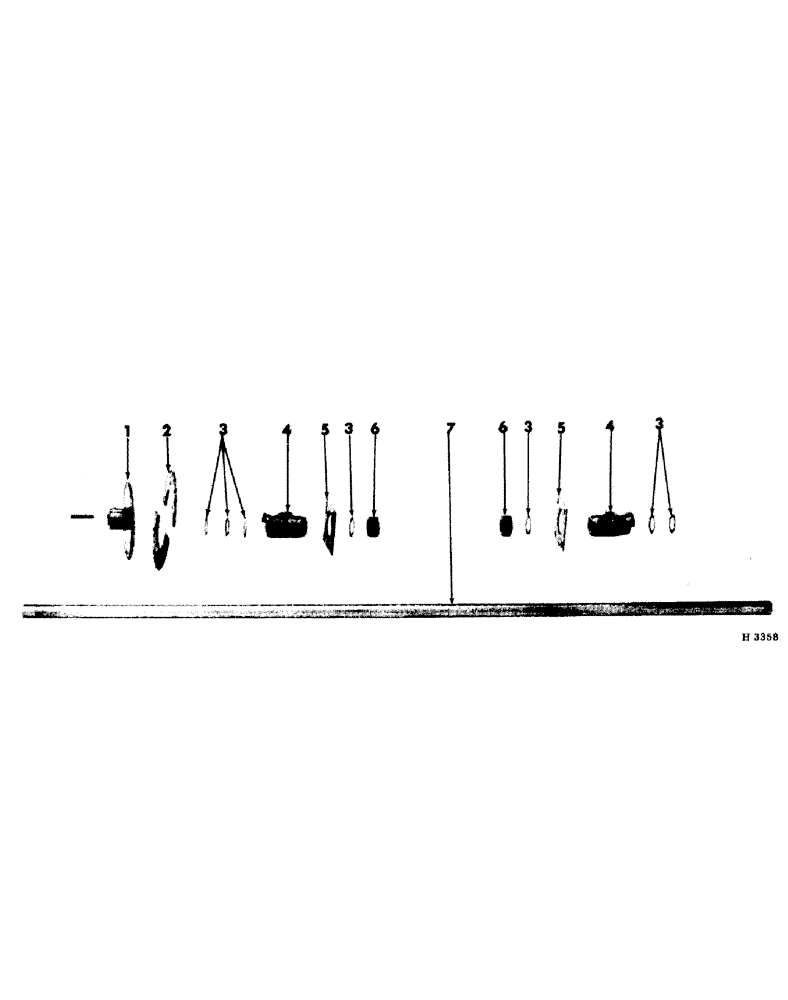

Запчасти Case IH 7 (05-04) - MAIN AXLE WITH PLAIN BEARINGS

1

603041R1

HUB, drive sprocket

1шт.

7/16 X 1" SQ-HD. CUP-POINT SET SCREW

2шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16" JAM NUT

2шт.

Q74

KEY,3/8" Sq x 3", Par

3/8" SQ X 3" PARALLEL KEY

1шт.

2

602463R1

SPROCKET, split drive 11T

2шт.

7/16 X 1-3/8" MACH. BOLT W/NUT

6шт.

7/16" LOCK WASHER

6шт.

3

Q121

WASHER

1-9/32 x 2 x 18 ga. (4-between outer axle bearing and hub) (3-between thrust collar and bearing)

7шт.

4

602456R1

BEARING, main axle

3шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 - 65 DEGREE LUBRICATION FITTING

3шт.

3/16 X 1-1/8" COTTER PIN

3шт.

5

602068R1

PLATE, axle bearing support

3шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

12шт.

1/2" LOCK WASHER

12шт.

6

603039R1

COLLAR, thrust

3шт.

7/16 X 1" SQ-HD. CUP-POINT SET SCREW

6шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16" JAM NUT

6шт.

7

605596R1

AXLE, 10 ft. main

1шт.

7

605597R1

AXLE, 12 ft. main

1шт.

7

605598R1

AXLE, 14 ft. main

1шт.
