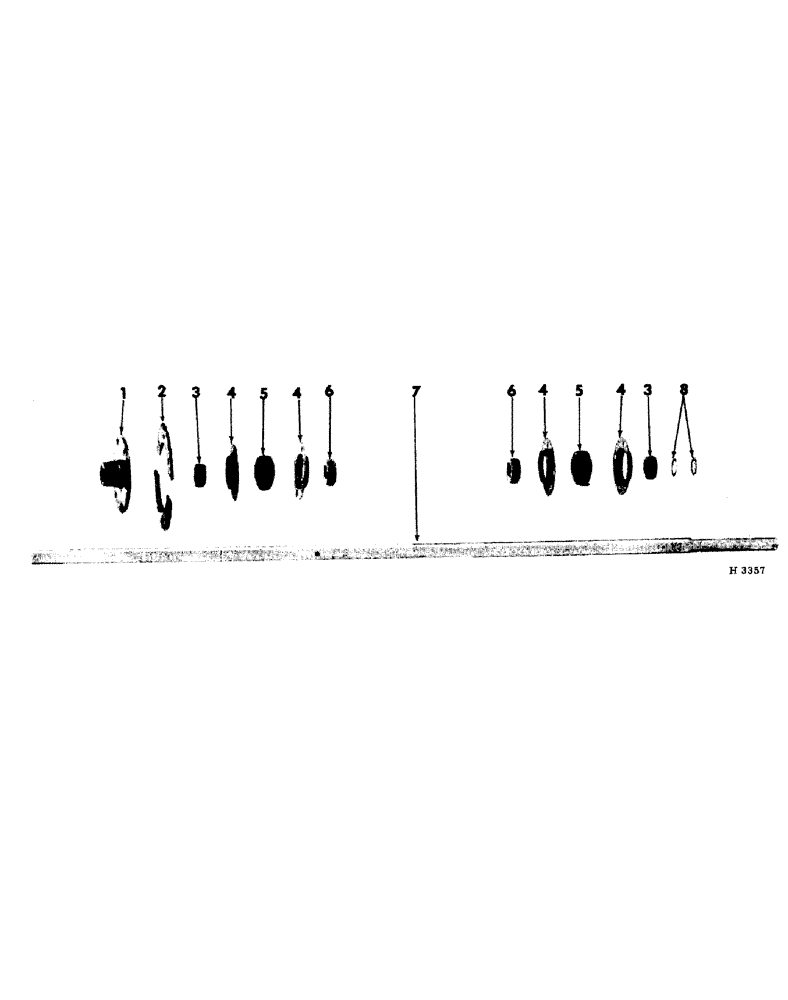

Запчасти Case IH 7 (05-04[A]) - MAIN AXLE WITH SEALED BEARINGS (SPECIAL)

1

603084R1

HUB, drive sprocket

1шт.

7/16 X 1" SQ-HD. CUP-PT. SET SCREW

2шт.

272120

CONNECTING LINK

7/16" HEX. JAM NUT

2шт.

2

602463R1

SPROCKET, split drive (11T)

2шт.

7/16 X 1-3/8" MACH. BOLT W/NUT

6шт.

7/16" LOCK WASHER

6шт.

3

603083R1

SPACER

axle

2шт.

4

603088R1

FLANGE

PLATE, bearing mounting

6шт.

1/2 X 1-1/4" CARRIAGE BOLT W/NUT

12шт.

1/2" LOCK WASHER

12шт.

5

ST625

BEARING

axle

3шт.

6

603085R1

COLLAR, thrust

3шт.

7/16 X 1" SQ-HD. CUP-PT. SET SCREW

6шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16" HEX. JAM NUT

6шт.

7

605600R1

AXLE, main 10 ft.

1шт.

7

603086R1

AXLE, main 12 ft.

1шт.

7

603087R1

AXLE, main 14 ft.

1шт.

8

Q121

WASHER

1-9/32 X 2 X 16 GAUGE WASHER

4шт.
