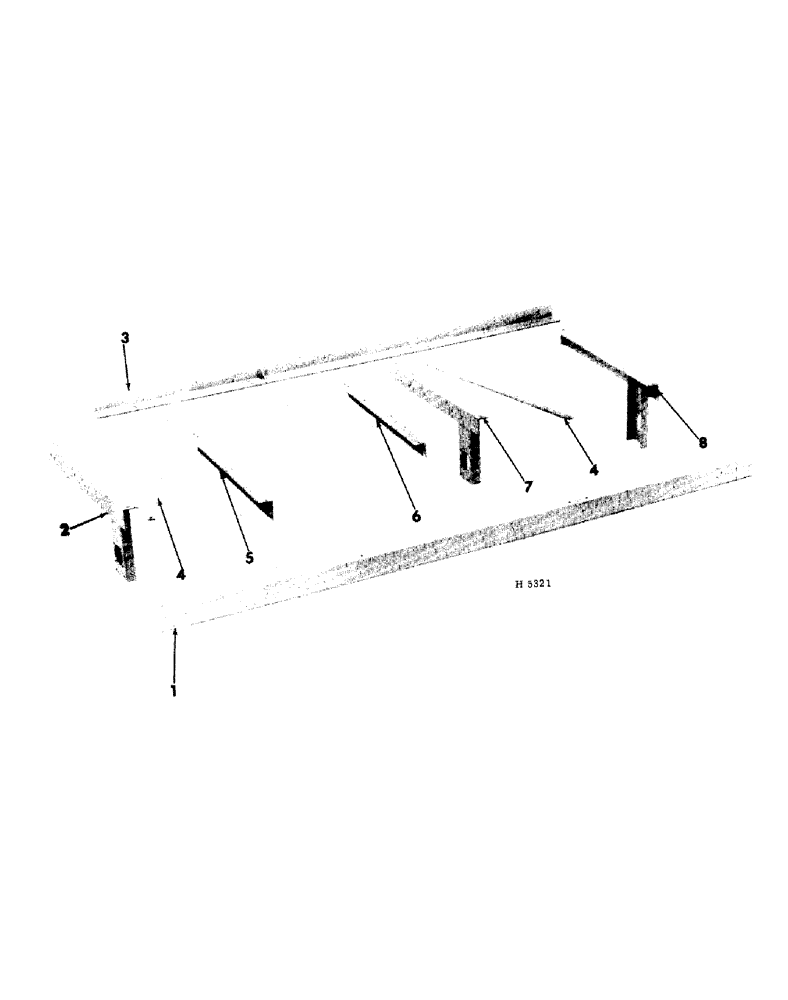

Запчасти Case IH 7 (05-02) - FRAME

1

605575R1

ANGLE, front frame 12 ft.

1шт.

1

605577R1

ANGLE, front frame 14 ft.

1шт.

1

605580R1

ANGLE, front frame 10 ft.

1шт.

2

605592R91

ANGLE ASSEMBLY, outside frame right (Pneumatic wheels)

1шт.

1/2 X 1-3/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

2

605902R91

ANGLE ASSEMBLY, outisde frame right (Steel wheels)

1шт.

1/2 X 1-3/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

3

605576R11

ANGLE ASSEMBLY, rear frame 12 ft.

1шт.

3

605578R11

ANGLE ASSEMBLY, rear frame 14 ft.

1шт.

3

605581R11

ANGLE ASSEMBLY, rear frame 10 ft.

1шт.

4

602693R1

STRAP, frame tie 12 ft.

2шт.

1/2 X 1-3/4" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

4

605561R1

STRAP, frame tie 10 ft.

2шт.

1/2 X 1-3/4" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

4

605562R1

STRAP, frame tie 14 ft.

2шт.

1/2 X 1-3/4" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

5

605579R11

SILL ASSEMBLY, intermediate

1шт.

1/2 X 1-3/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

6

605572R11

ANGLE ASSEMBLY, boot support right

1шт.

1/2 X 1-3/8" MACH. BOLT W/NUT

3шт.

1/2" LOCK WASHER

3шт.

7

605593R91

ANGLE ASSEMBLY, boot support left (Steel wheels)

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

7

605594R91

ANGLE ASSEMBLY, boot support left (Pneumatic wheels)

1шт.

1/2 X 1-1/4" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

8

605591R91

ANGLE ASSEMBLY, outside frame left (Pneumatic wheels)

1шт.

1/2 X 1-3/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

8

605901R91

ANGLE ASSEMBLY, outside frame left (Steel wheels)

1шт.

1/2 X 1-3/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.
