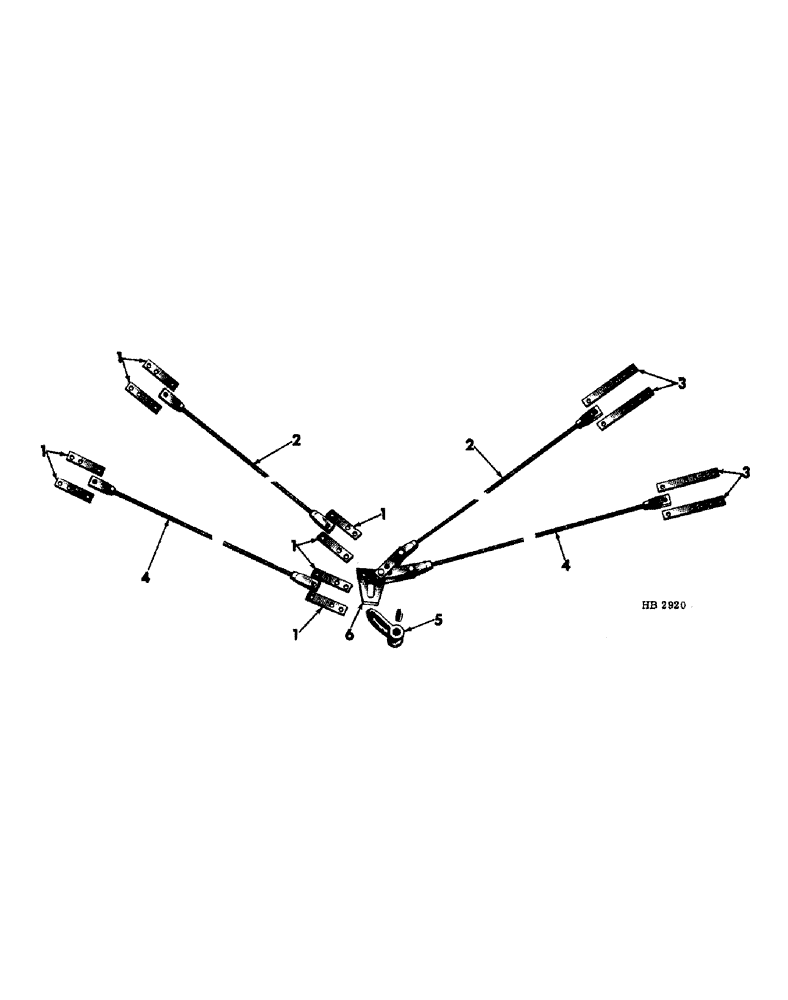

Запчасти Case IH 7 (05-17) - CABLE HITCH FOR DUPLEX MACHINES

1

L13527

STRAP, cable short

12шт.

D3373

DISC

1/2 X 1-1/2" STD-HD. DLD. PIN (Rear drawbar clevis end)

4шт.

D3375

PIN

1/2 X 2-1/8" STD-HD. DLD. PIN (Front hitch plate end)

3шт.

3/16 X 1" COTTER PIN

7шт.

2

605629R11

CABLE, duplex inside 10 ft.

2шт.

2

605631R11

CABLE, duplex inside 12 ft.

2шт.

2

605632R11

CABLE, duplex inside 14 ft.

2шт.

3

602744R1

STRAP, cable long

4шт.

D3373

DISC

1/2 X 1-1/2" STD-HD. DLD. PIN (Rear drawbar clevis end)

4шт.

D3375

PIN

1/2 X 2-1/8" STD-HD. DLD. PIN (Front hitch plate end)

3шт.

3/16 X 1" COTTER PIN

7шт.

4

602746R11

CABLE, duplex outside 12 ft.

2шт.

4

602748R11

CABLE, duplex outside 14 ft.

2шт.

4

605630R11

CABLE, duplex outside 10 ft.

2шт.

5

SA3203

CLEVIS, main draw

1шт.

N42375

PIN

3/4 X 3-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/2" COTTER PIN

1шт.

6

L13528

PLATE, hitch

1шт.
