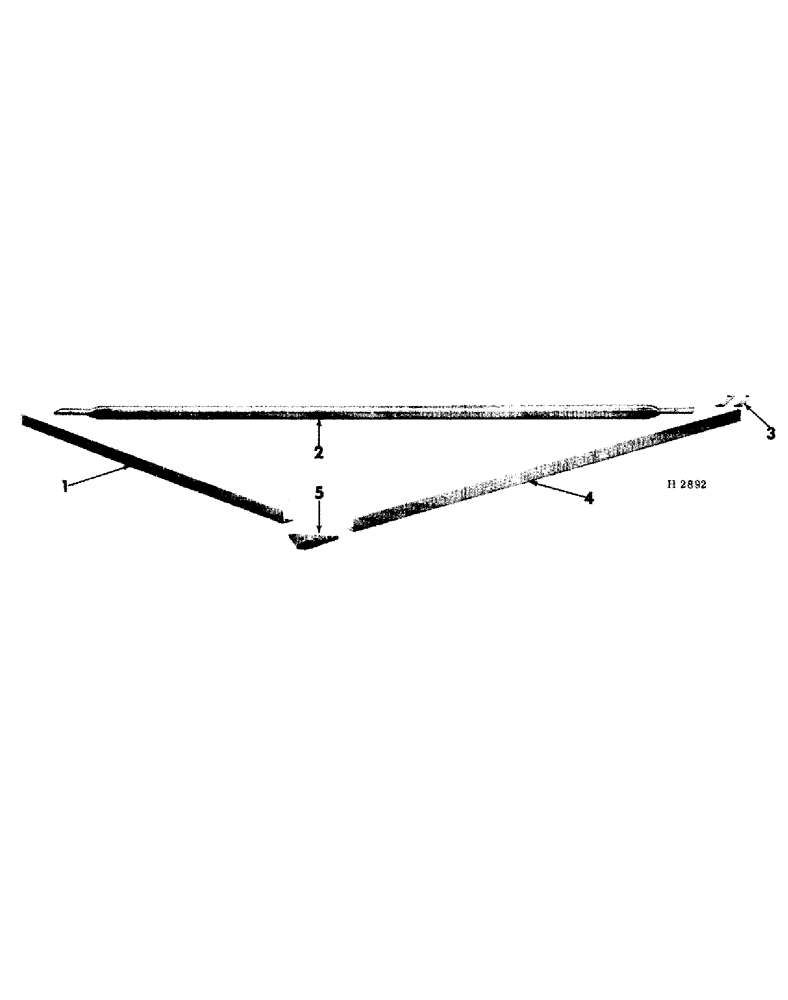

Запчасти Case IH 7 (05-15[B]) - ANGLE HITCH FOR DUPLEX MACHINES

1

602739R11

ANGLE ASSEMBLY, hitch right, 12 ft.

1шт.

1

602741R11

ANGLE ASSEMBLY, hitch right, 14 ft.

1шт.

1

605627R11

ANGLE ASSEMBLY, hitch right, 10 ft.

1шт.

2

602742R1

PIPE, spreader - 12 ft.

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

2

602743R1

PIPE, spreader - 14 ft.

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

2

605656R1

PIPE, spreader - 10 ft.

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT

4шт.

1/2" LOCK WASHER

4шт.

3

602735R1

STRAP, hitch

2шт.

PO20851

3/4 X 1-11/16" STD-HD. DLD. PIN

2шт.

1/4 X 1-1/2" COTTER PIN

1шт.

4

602738R11

ANGLE ASSEMBLY, hitch left, 12 ft.

1шт.

4

602740R11

ANGLE ASSEMBLY, hitch left, 14 ft.

1шт.

4

602626R11

ANGLE ASSEMBLY, hitch left, 10 ft.

1шт.

5

L13997

PLATE, hitch

1шт.

5/8 X 1-3/4" MACH. BOLT W/NUT

4шт.

5/8" LOCK WASHER

4шт.
