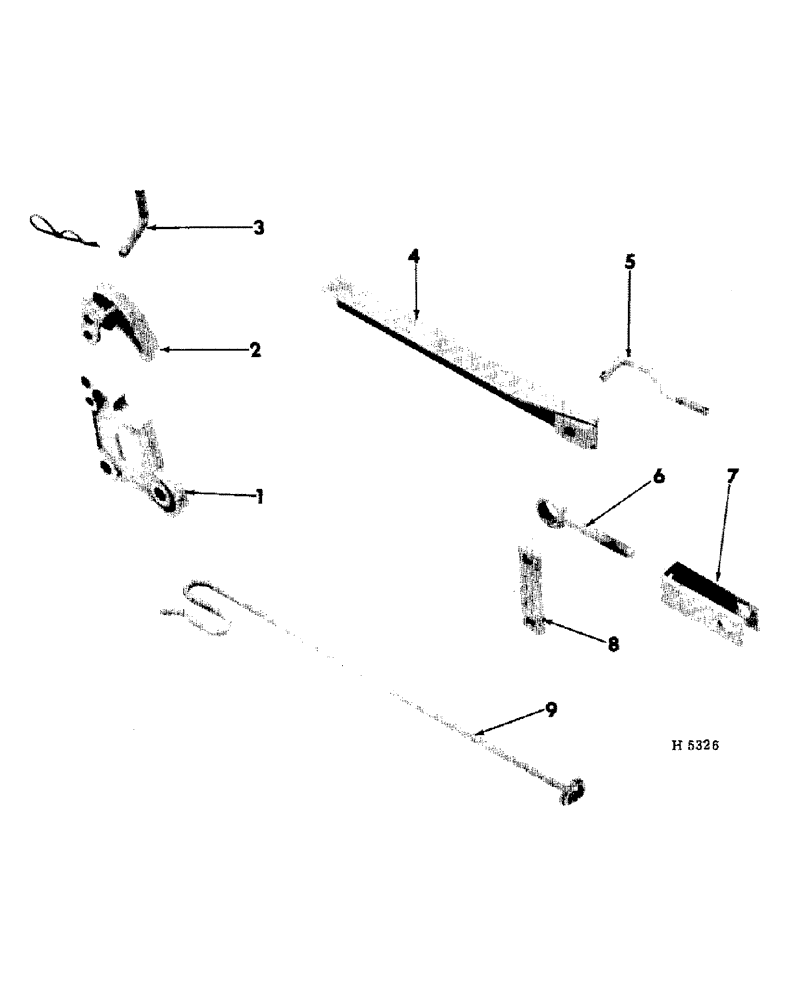

Запчасти Case IH 7 (05-14) - HYDRAULIC ADAPTER ATTACHMENT

1

602800R1

BRACKET

front anchor

1шт.

3/4 X 2" MACH. BOLT W/NUT

2шт.

3/4" LOCK WASHER

2шт.

2

526263R1

RETAINER

cylinder

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD. DLD. PIN

1шт.

3/16 X 1-1/2" COTTER PIN

1шт.

3

602801R1

PIN

locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

4

605619R11

SUPPORT ASSEMBLY, quadrant ("A")

1шт.

5/8 X 1-3/8" MACH. BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

5

605945R1

ROD, tie ("A")

1шт.

17/32 X 7/8 X 16 GA. WASHER

2шт.

1/2" HEX. NUT

1шт.

1/8 X 1" COTTER PIN

2шт.

6

602514R1

EYEBOLT, ("B")

1шт.

5/8" HEX. NUT

1шт.

1/8 X 1" COTTER PIN

1шт.

7

600831R2

LOOP, locking device

1шт.

8

615735R1

STRAP, flat ("B")

2шт.

1/2 X 2" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

9

651793R11

SUPPORT

ASSEMBLY, flexible hose

1шт.

5/8 X 2" MACH. BOLT W/NUT

1шт.

5/8" LOCK WASHER

1шт.

21/32 X 1-1/2 X 11 GA. WASHER

2шт.
